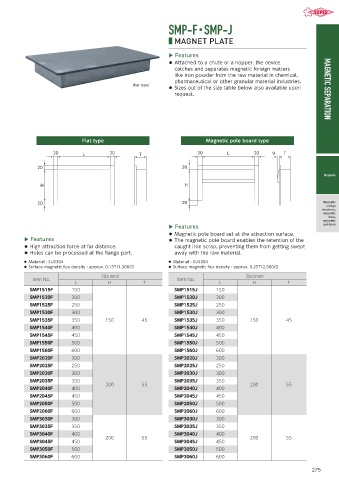

SMP-F ・ SMP-J

■ MAGNET PLATE

Features

● Attached to a chute or a hopper, the device
catches and separates magnetic foreign matters
like iron powder from the raw material in chemical,
pharmaceutical or other granular material industries.
(flat type)
● Sizes out of the size table below also available upon MAGNETIC SEPARATION
request.

Flat type Magnetic pole board type

20 L 20 T 20 L 20 9 T

20 20
Magnets
H H

20 20 Magnetic
sludge
strainers,
magnetic
bars,
magnetic
Features pen bars
● Magnetic pole board set at the attraction surface.

Features ● The magnetic pole board enables the retention of the

● High attraction force at far distance. caught iron scrap, preventing them from getting swept
● Holes can be processed at the flange part. away with the raw material.
● Material : SUS304 ● Material : SUS304
● Surface magnetic flux density : approx. 0.13T（1,300G） ● Surface magnetic flux density : approx. 0.25T（2,500G）
Size （ｍｍ） Size （ｍｍ）
Item No. Item No.
L H T L H T
SMP1515F 150 SMP1515J 150
SMP1520F 200 SMP1520J 200
SMP1525F 250 SMP1525J 250
SMP1530F 300 SMP1530J 300
SMP1535F 350 150 45 SMP1535J 350 150 45
SMP1540F 400 SMP1540J 400
SMP1545F 450 SMP1545J 450
SMP1550F 500 SMP1550J 500
SMP1560F 600 SMP1560J 600
SMP2020F 200 SMP2020J 200
SMP2025F 250 SMP2025J 250
SMP2030F 300 SMP2030J 300
SMP2035F 350 SMP2035J 350
200 55 200 55
SMP2040F 400 SMP2040J 400
SMP2045F 450 SMP2045J 450
SMP2050F 500 SMP2050J 500
SMP2060F 600 SMP2060J 600
SMP3030F 300 SMP3030J 300
SMP3035F 350 SMP3035J 350
SMP3040F 400 SMP3040J 400
200 55 200 55
SMP3045F 450 SMP3045J 450
SMP3050F 500 SMP3050J 500
SMP3060F 600 SMP3060J 600
