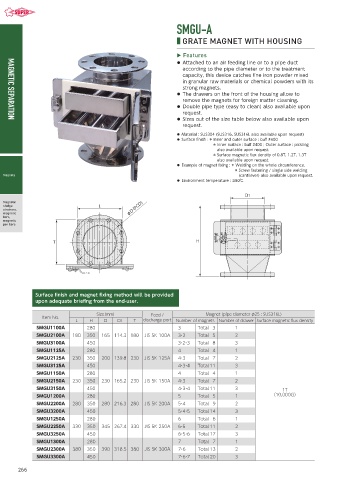

SMGU-A

■ GRATE MAGNET WITH HOUSING

Features

● Attached to an air feeding line or to a pipe duct
according to the pipe diameter or to the treatment
capacity, this device catches fine iron powder mixed
in granular raw materials or chemical powders with its
strong magnets.
● The drawers on the front of the housing allow to

remove the magnets for foreign matter cleaning.

● Double pipe type (easy to clean) also available upon
request.

● Sizes out of the size table below also available upon
MAGNETIC SEPARATION
request.
● Material : SUS304 (SUS316, SUS316L also available upon request)
● Surface finish : ＊ Inner and outer surface : buff #400
＊ Inner surface : buff #400 ; Outer surface : pickling
also available upon request.
＊ Surface magnetic flux density of 0.8T, 1.2T, 1.3T
also available upon request.
● Example of magnet fixing : ＊ Welding on the whole circumference.
＊ Screw fastening / single side welding
Magnets (cantilever) also available upon request.
● Environment temperature : ≦80℃

D1
Magnetic
sludge L （PCD)
strainers,
magnetic φD
bars,
magnetic
pen bars

T H

Surface finish and magnet fixing method will be provided
upon adequate briefing from the end-user.

Size （mm） Feed / Magnet (pipe diameter φ25 : SUS316L)
Item No.
L H D D1 T discharge port Number of magnets Number of drawer Surface magnetic flux density
SMGU1100A 280 3 Total 3 1
SMGU2100A 180 350 165 114.3 180 JIS 5K 100A 3・2 Total 5 2
SMGU3100A 450 3・2・3 Total 8 3
SMGU1125A 280 4 Total 4 1
SMGU2125A 230 350 200 139.8 230 JIS 5K 125A 4・3 Total 7 2
SMGU3125A 450 4・3・4 Total 11 3
SMGU1150A 280 4 Total 4 1
SMGU2150A 230 350 230 165.2 230 JIS 5K 150A 4・3 Total 7 2
SMGU3150A 450 4・3・4 Total 11 3 1T
SMGU1200A 280 5 Total 5 1 （10,000G）
SMGU2200A 280 350 280 216.3 280 JIS 5K 200A 5・4 Total 9 2
SMGU3200A 450 5・4・5 Total 14 3
SMGU1250A 280 6 Total 6 1
SMGU2250A 330 350 345 267.4 330 JIS 5K 250A 6・5 Total 11 2
SMGU3250A 450 6・5・6 Total 17 3
SMGU1300A 280 7 Total 7 1
SMGU2300A 380 350 390 318.5 380 JIS 5K 300A 7・6 Total 13 2
SMGU3300A 450 7・6・7 Total 20 3
