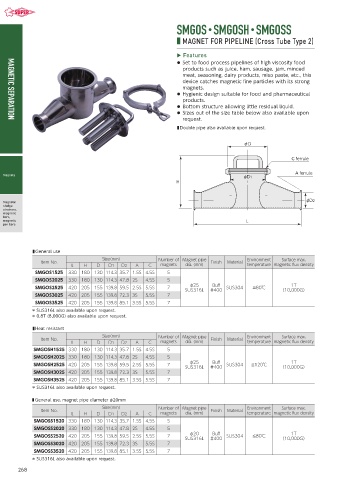

SMGOS ・ SMGOSH ・ SMGOSS

■ MAGNET FOR PIPELINE (Cross Tube Type 2)

Features
● Set to food process pipelines of high viscosity food
products such as juice, ham, sausage, jam, minced
meat, seasoning, dairy products, miso paste, etc., this
device catches magnetic fine particles with its strong
magnets.
● Hygienic design suitable for food and pharmaceutical
products.
● Bottom structure allowing little residual liquid.
● Sizes out of the size table below also available upon
request.
MAGNETIC SEPARATION
■ Double pipe also available upon request.

φD

C ferrule

Magnets A ferrule
φD1
H

Magnetic φD2
sludge
strainers,
magnetic
bars,
magnetic L
pen bars

■ General use
Size （mm） Number of Magnet pipe Environment Surface max.
Item No. Finish Material
L H D D1 D2 A C magnets dia. (mm) temperature magnetic flux density
SMGOS1525 330 180 130 114.3 35.7 1.5S 4.5S 5
SMGOS2025 330 180 130 114.3 47.8 2S 4.5S 5
φ25 Buff 1T
SMGOS2525 420 205 155 139.8 59.5 2.5S 5.5S 7 SUS304 ≦80℃
SUS316L ＃400 （10,000G）
SMGOS3025 420 205 155 139.8 72.3 3S 5.5S 7
SMGOS3525 420 205 155 139.8 85.1 3.5S 5.5S 7
＊ SUS316L also available upon request.
＊ 0.8T (8,000G) also available upon request.

■ Heat resistant
Size （mm） Number of Magnet pipe Environment Surface max.
Item No. Finish Material
L H D D1 D2 A C magnets dia. (mm) temperature magnetic flux density
SMGOSH1525 330 180 130 114.3 35.7 1.5S 4.5S 5
SMGOSH2025 330 180 130 114.3 47.8 2S 4.5S 5
φ25 Buff 1T
SMGOSH2525 420 205 155 139.8 59.5 2.5S 5.5S 7 SUS304 ≦120℃
SUS316L ＃400 （10,000G）
SMGOSH3025 420 205 155 139.8 72.3 3S 5.5S 7
SMGOSH3525 420 205 155 139.8 85.1 3.5S 5.5S 7
＊ SUS316L also available upon request.
■ General use, magnet pipe diameter φ20mm
Size （mm） Number of Magnet pipe Environment Surface max.
Item No. Finish Material
L H D D1 D2 A C magnets dia. (mm) temperature magnetic flux density
SMGOSS1520 330 180 130 114.3 35.7 1.5S 4.5S 5
SMGOSS2020 330 180 130 114.3 47.8 2S 4.5S 5
φ20 Buff 1T
SMGOSS2520 420 205 155 139.8 59.5 2.5S 5.5S 7 SUS304 ≦80℃
SUS316L ＃400 （10,000G）
SMGOSS3020 420 205 155 139.8 72.3 3S 5.5S 7
SMGOSS3520 420 205 155 139.8 85.1 3.5S 5.5S 7
＊ SUS316L also available upon request.
