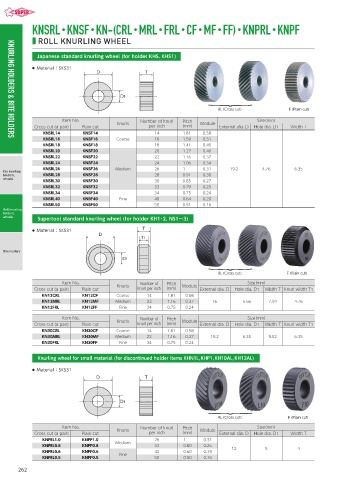

Page 264 - 世霸SuperToolVol.6

KNSRL ・ KNSF ・ KN-(CRL ・ MRL ・ FRL ・ CF ・ MF ・ FF) ・ KNPRL ・ KNPF

■ ROLL KNURLING WHEEL

Japanese standard knurling wheel (for holder KHS, KHS1)

● Material ：SKS31
D T

D1

RL (Cross cut) F (Plain cut)
Item No. Number of knurl Pitch Size （mm）
Knurls Module
Cross cut (a pair) Plain cut per inch （mm） External dia. D Hole dia. D1 Width T
KNSRL14 KNSF14 14 1.81 0.58
KNSRL16 KNSF16 Coarse 16 1.59 0.51
KNURLING HOLDERS & BITE HOLDERS
KNSRL18 KNSF18 18 1.41 0.45
KNSRL20 KNSF20 20 1.27 0.40
KNSRL22 KNSF22 22 1.16 0.37
KNSRL24 KNSF24 24 1.06 0.34
KNSRL26 KNSF26 Medium 26 1 0.31 19.2 4.76 6.35
Cut knurling
holders, KNSRL28 KNSF28 28 0.91 0.30
wheels
KNSRL30 KNSF30 30 0.85 0.27
KNSRL32 KNSF32 32 0.79 0.25
KNSRL34 KNSF34 34 0.75 0.24
KNSRL40 KNSF40 Fine 40 0.64 0.20
KNSRL50 KNSF50 50 0.51 0.16
Roll knurling
holders,
wheels
Supertool standard knurling wheel (for holder KH1･2, NS1〜3)
T
● Material ：SKS31
D
T1
Bite holders
D1

RL (Cross cut) F (Plain cut)
Item No. Number of Pitch Size （mm）
Knurls Module
Cross cut (a pair) Plain cut knurl per inch （mm） External dia. D Hole dia. D1 Width T Knurl width T1
KN12CRL KN12CF Coarse 14 1.81 0.58
KN12MRL KN12MF Medium 22 1.16 0.37 16 5.56 7.94 4.76
KN12FRL KN12FF Fine 34 0.75 0.24
Item No. Number of Pitch Size （mm）
Knurls Module
Cross cut (a pair) Plain cut knurl per inch （mm） External dia. D Hole dia. D1 Width T Knurl width T1
KN30CRL KN30CF Coarse 14 1.81 0.58
KN30MRL KN30MF Medium 22 1.16 0.37 19.2 6.35 9.52 6.35
KN30FRL KN30FF Fine 34 0.75 0.24

Knurling wheel for small material (for discontinued holder items KHN1L，KHP1，KH10AL，KH12AL)

● Material ：SKS31
D T

D1

RL (Cross cut) F (Plain cut)
Item No. Number of knurl Pitch Size （mm）
Knurls Module
Cross cut (a pair) Plain cut per inch （mm） External dia. D Hole dia. D1 Width T
KNPRL1.0 KNPF1.0 26 1 0.31
Medium
KNPRL0.8 KNPF0.8 32 0.80 0.25
12 5 4
KNPRL0.6 KNPF0.6 42 0.60 0.19
Fine
KNPRL0.5 KNPF0.5 50 0.50 0.16
