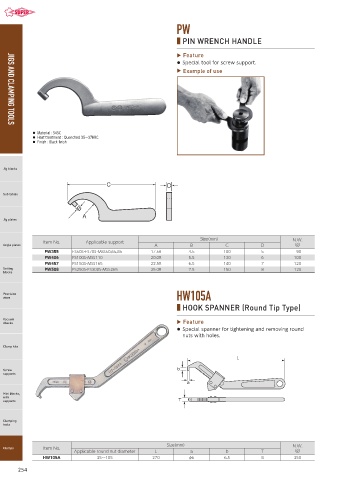

Page 256 - 世霸SuperToolVol.6

PW

■ PIN WRENCH HANDLE

Feature
● Special tool for screw support.
Example of use

JIGS AND CLAMPING TOOLS
● Material : S45C
● Heat treatment : Quenched 35～37HRC
● Finish : Black finish

Jig blocks

Sub tables

Jig plates

Size （mm） N.W.
Item No. Applicable support
Angle plates A B C D （g）
PW355 FS50S・FS70S・MSS50,65,85 17.5R 4.5 100 5 90
PW406 FS100S・MSS110 20.0R 5.5 130 6 100
PW457 FS150S・MSS165 22.5R 6.5 140 7 120
Setting PW508 FS250S・FS300S・MSS265 25.0R 7.5 150 8 120
blocks

Precision HW105A
vises
■ HOOK SPANNER (Round Tip Type)

Vacuum
chucks Feature
● Special spanner for tightening and removing round
nuts with holes.

Clamp kits

Screw
supports

Mini blocks,
mini
supports

Clamping
tools

Size （mm） N.W.
Clamps Item No.
Applicable round nut diameter L a b T （g）
HW105A 35〜105 270 φ6 6.5 8 350

254
