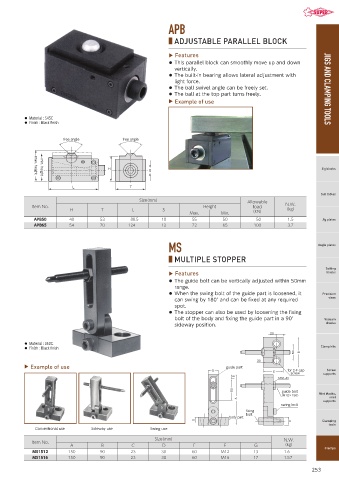

APB

■ ADJUSTABLE PARALLEL BLOCK

Features
● This parallel block can smoothly move up and down
vertically.
● The built-in bearing allows lateral adjustment with
light force.
● The ball swivel angle can be freely set. JIGS AND CLAMPING TOOLS
● The ball at the top part turns freely.
Example of use

● Material : S45C
● Finish : Black finish

Jig blocks

Sub tables
Size （mm） Allowable
Item No. Height load N.W.
H T L S （KN） （kg）
Max. Min.
APB50 40 53 88.5 10 55 50 50 1.5 Jig plates
APB65 54 70 124 12 72 65 100 3.7

MS Angle plates

■ MULTIPLE STOPPER
Setting
Features blocks
● The guide bolt can be vertically adjusted within 50mm
range.
● When the swing bolt of the guide part is loosened, it Precision
vises
can swing by 180° and can be fixed at any required
spot.
● The stopper can also be used by loosening the fixing
bolt of the body and fixing the guide part in a 90° Vacuum
chucks
sideway position.

● Material : S50C
Clamp kits
● Finish : Black finish

Example of use
Screw
supports

Mini blocks,
mini
supports

Clamping
tools
Conventional use Sideway use Swing use
Size （mm） N.W.
Item No.
A B C D E F G （kg）
Clamps
MS1512 150 90 23 30 60 M12 13 1.6
MS1516 150 90 23 30 60 M16 17 1.57
