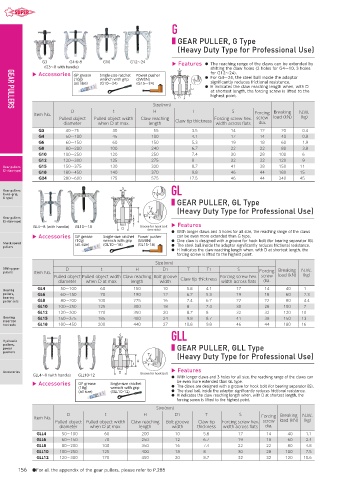

Page 158 - 世霸SuperToolVol.6

G

■ GEAR PULLER, G Type
(Heavy Duty Type for Professional Use)

G3 G4・6・8 G10 G12〜24 Features ● The reaching range of the claws can be extended by
(G3〜8 with handle) shifting the claw holes (2 holes for G4〜10, 3 holes
S
Accessories GP grease Single-size ratchet Power pusher for G12〜24).
(10g) wrench with grip (SW8N) ● For G4〜24, the steel ball inside the adaptor
T significantly reduces frictional resistance.
(all size) (G10〜24) (G15〜24)
● H indicates the claw reaching length when, with D
H at shortest length, the forcing screw is lifted to the
t
highest point.
D
Size （mm）
GEAR PULLERS
D t H T S Forcing Breaking N.W.
Item No.
Pulled object Pulled object width Claw reaching Forcing screw hex. screw load (kN) （kg）
diameter when D at max. length Claw tip thickness width across flats dia.
G3 40〜75 30 55 3.5 14 12 20 0.4
G4 50〜100 45 100 4.1 17 14 40 0.8
G6 60〜150 60 150 5.3 19 18 60 1.9
G8 80〜200 100 240 6.7 22 22 80 3.8
G10 100〜250 120 250 7.4 30 28 100 6
G12 120〜300 125 275 8 32 32 120 9
Gear pullers G15 150〜375 130 320 8.7 41 38 150 11
(2-claw type)
G18 180〜450 140 370 9.8 46 44 180 15
G24 280〜600 175 575 17.5 46 44 240 45
Gear pullers S GL
(auto-grip, T1
G type)
■ GEAR PULLER, GL Type
(Heavy Duty Type for Professional Use)
T
H
Gear pullers D1
(3-claw type) t
GL4〜8 (with handle) GL10〜18 Features
D
● With longer claws and 3 holes for all size, the reaching range of the claws
Accessories GP grease Single-size ratchet Power pusher can be even more extended than G type.
(10g) wrench with grip (SW8N) ● One claw is designed with a groove for hook bolt (for bearing separator BS).
Shock speed
pullers (all size) (GL10〜18) (GL15・18) ● The steel ball inside the adaptor significantly reduces frictional resistance.
● H indicates the claw reaching length when, with D at shortest length, the
forcing screw is lifted to the highest point.
Size （mm）
Sliding gear D t H D1 T T1 S Breaking
pullers Item No. Forcing N.W.
Pulled object Pulled object width Claw reaching Bolt groove Claw tip thickness Forcing screw hex. screw load (kN) （kg）
diameter when D at max. length width width across flats dia.
Bearing GL4 50〜100 60 150 10 5.8 4.1 17 14 40 1
pullers, GL6 60〜150 70 190 12 6.7 5.3 19 18 60 2.3
bearing
puller sets GL8 80〜200 100 275 16 7.4 6.7 22 22 80 4.4
GL10 100〜250 125 300 18 8 7.4 30 28 100 7
GL12 120〜300 170 350 20 8.7 8 32 32 120 10
Bearing GL15 150〜375 185 400 24 9.8 8.7 41 38 150 13
insertion
tool sets GL18 180〜450 200 440 27 10.8 9.8 46 44 180 16
GLL
S
Hydraulic
pullers,
power ■ GEAR PULLER, GLL Type
pushers
T (Heavy Duty Type for Professional Use)
H
t D1
Accessories D Features
GLL4〜8 (with handle) GLL10・12
● With longer claws and 3 holes for all size, the reaching range of the claws can
Accessories GP grease Single-size ratchet be even more extended than GL type.
(10g) wrench with grip ● The claws are designed with a groove for hook bolt (for bearing separator BS).
(all size) (GLL10・12) ● The steel ball inside the adaptor significantly reduces frictional resistance.
● H indicates the claw reaching length when, with D at shortest length, the
forcing screw is lifted to the highest point.
Size （mm）
D t H D1 T S Breaking N.W.
Item No. Forcing
Pulled object Pulled object width Claw reaching Bolt groove Claw tip Forcing screw hex. screw load (kN) （kg）
diameter when D at max. length width thickness width across flats dia.
GLL4 50〜100 60 200 10 5.8 17 14 40 1.1
GLL6 60〜150 70 250 12 6.7 19 18 60 2.4
GLL8 80〜200 100 350 16 7.4 22 22 80 4.8
GLL10 100〜250 125 400 18 8 30 28 100 7.5
GLL12 120〜300 170 450 20 8.7 32 32 120 10.6

156 ●For all the appendix of the gear pullers, please refer to P.288
