SSP

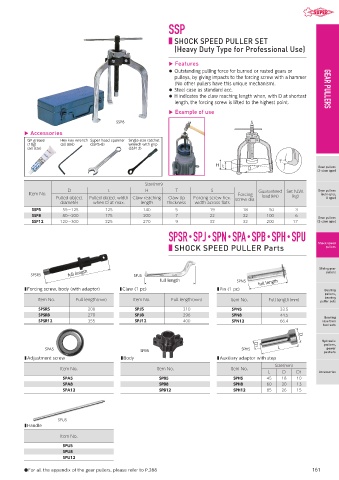

■ SHOCK SPEED PULLER SET
(Heavy Duty Type for Professional Use)

Features
● Outstanding pulling force for burned or rusted gears or
pulleys, by giving impacts to the forcing screw with a hammer
(No other pullers have this unique mechanism).
● Steel case as standard acc. GEAR PULLERS
● H indicates the claw reaching length when, with D at shortest
length, the forcing screw is lifted to the highest point.
Example of use
SSP8 S
Accessories
GP grease Hex key wrench Super head spanner Single-size ratchet
(10g) (all size) (SSP5・8) wrench with grip
(all size) (SSP12)

T
H t Gear pullers
D
(2-claw type)
Size （mm）
D t H T S Guaranteed Set N.W. Gear pullers
Item No. Forcing (auto-grip,
Pulled object Pulled object width Claw reaching Claw tip Forcing screw hex. screw dia. load （kN） （kg） G type)
diameter when D at max. length thickness width across flats
SSP5 55〜125 125 140 5 19 18 50 3
SSP8 80〜200 175 200 7 22 22 100 6 Gear pullers
SSP12 120〜300 225 270 9 32 32 200 17 (3-claw type)
SPSR ・ SPJ ・ SPN ・ SPA ・ SPB ・ SPH ・ SPU

■ SHOCK SPEED PULLER Parts Shock speed
pullers

Sliding gear
full length pullers
SPSR5 SPJ5
full length SPN5
full length
■ Forcing screw, body (with adaptor) ■ Claw (1 pc) ■ Pin (1 pc) Bearing
pullers,
bearing
Item No. Full length（mm） Item No. Full length（mm） Item No. Full length（mm） puller sets
SPSR5 208 SPJ5 210 SPN5 33.5
SPSR8 270 SPJ8 296 SPN8 44.5
Bearing
SPSR12 355 SPJ12 400 SPN12 66.4 insertion
tool sets
D
Hydraulic
pullers,
L power
D1
SPA5 SPH5
SPB5 pushers
■ Adjustment screw ■ Body ■ Auxiliary adaptor with step
Size （mm）
Item No. Item No. Item No.
L D D1 Accessories
SPA5 SPB5 SPH5 45 18 10
SPA8 SPB8 SPH8 60 20 13
SPA12 SPB12 SPH12 85 26 15

SPU5
■ Handle
Item No.
SPU5
SPU8
SPU12

●For all the appendix of the gear pullers, please refer to P.288 161
