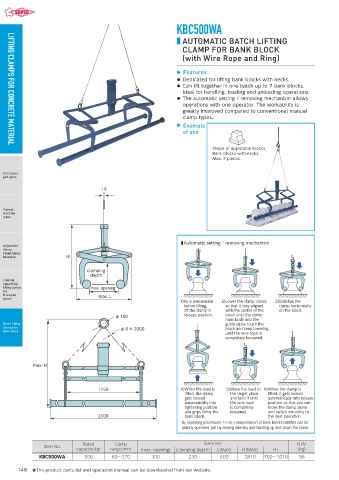

KBC500WA

■ AUTOMATIC BATCH LIFTING
CLAMP FOR BANK BLOCK
(with Wire Rope and Ring)

Features
● Dedicated for lifting bank blocks with necks.
● Can lift together in one batch up to 7 bank blocks.
Ideal for handling, loading and unloading operations.
● The automatic setting / removing mechanism allows
operations with one operator. The workability is
greatly improved compared to conventional manual
clamp types.
Example
of use

LIFTING CLAMPS FOR CONCRETE MATERIAL
Shape of applicable blocks
Bank blocks with necks.
Max. 7 pieces.

Cam types,
pad types
19

Manual,
machine
types

■ Automatic setting / removing mechanism
Adjustable
clamp
range types,
balances H1
clamping
depth
Internal
expanding
lifting clamps max. opening
for
U shaped max. L
gutter
1) As a preparation 2) Lower the clamp slowly 3) Stabilize the
before lifting, so that it stay aligned clamp horizontally
lift the clamp in with the center of the on the block.
φ 100 release position. block until the clamp
main body and the
Batch lifting guide pipes touch the
clamps for φ 8 × 2000 block and keep lowering
bank block
until the wire rope is
completely loosened.

max. H

1150 4) When the load is 5) Move the load to 6) When the clamp is
lifted, the clamp the target place lifted, it gets locked
gets locked and land it until automatically into release
automatically into the wire rope position so that you can
tightening position is completely move the clamp alone
and grips firmly the loosened. and switch smoothly to
2100 bank block. the next operation.
By repeating procedures 1)〜5), transportation of bank blocks batches can be
quickly operated just by moving laterally and hoisting up and down the crane.

Rated Clamp Size（mm） N.W.
Item No.
capacity （kg） range（mm） (max. opening) (clamping depth) L （MAX） H（MAX) H1 (kg)
KBC500WA 500 60〜270 300 230 600 2810 700〜1010 56

148 ★The product parts list and operation manual can be downloaded from our website.
