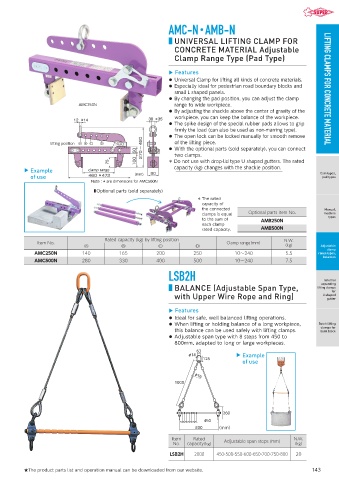

AMC-N ・ AMB-N

■ UNIVERSAL LIFTING CLAMP FOR
CONCRETE MATERIAL Adjustable
Clamp Range Type (Pad Type)

Features
● Universal Clamp for lifting all kinds of concrete materials.
● Especially ideal for pedestrian road boundary blocks and LIFTING CLAMPS FOR CONCRETE MATERIAL
small L shaped panels.
● By changing the pad position, you can adjust the clamp
AMC250N range to wide workpiece.
● By adjusting the shackle above the center of gravity of the
＊ ＊ workpiece, you can keep the balance of the workpiece.
● The spike design of the special rubber pads allows to grip
firmly the load (can also be used as non-marring type).
● The open lock can be locked manually for smooth remove
lifting position Ⓐ Ⓑ Ⓒ Ⓓ of the lifting piece.
● With the optional parts (sold separately), you can connect
two clamps.
＊ Do not use with drop-lid type U shaped gutters. The rated
Example clamp range capacity (kg) changes with the shackle position. Cam types,
of use ＊ (mm) pad types
Note : ＊ are dimensions for AMC500N
■ Optional parts (sold separately)
＊ The rated
capacity of
the connected Manual,
Optional parts item No. machine
clamps is equal
types
to the sum of AMB250N
each clamp
rated capacity. AMB500N
Rated capacity (kg) by lifting position N.W.
Item No. Clamp range（mm）
Ⓐ Ⓑ Ⓒ Ⓓ （kg） Adjustable
clamp
AMC250N 140 165 200 250 10〜240 5.5 range types,
balances
AMC500N 280 330 400 500 10〜240 7.5
LSB2H Internal
expanding
■ BALANCE (Adjustable Span Type, lifting clamps
for
with Upper Wire Rope and Ring) U shaped
gutter
Features
● Ideal for safe, well balanced lifting operations.
● When lifting or holding balance of a long workpiece, Batch lifting
clamps for
this balance can be used safely with lifting clamps. bank block
● Adjustable span type with 8 steps from 450 to
800mm, adapted to long or large workpieces.
63
φ14 Example
125
of use
φ16
1000

260
450
50 50 50 50 50 50 50
800 （ｍｍ）
Item Rated Adjustable span steps (mm) N.W.
No. capacity （kg） （kg）
LSB2H 2000 450・500・550・600・650・700・750・800 20

★The product parts list and operation manual can be downloaded from our website. 143
