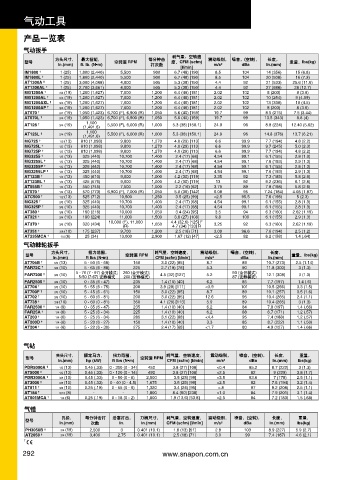

Page 294 - 实耐宝中文2012-CAT1200

气动工具

产品一览表

气动扳手
耗气量，空转速
方头尺寸， 最大扭矩， 每分钟击 震动级别， 噪音，(空转)， 长度，
型号 空转速 RPM 度，CFM (scfm) 重量，Ibs(kg)
In.(mm) ft. lb. (N•m) 打次数 m/s² dBa In.(mm)
[I/min]
IM1800 † 1 (25) 1,800 (2,440) 5,500 900 6.7 (48) [190] 8.5 104 14 (356) 15 (6.8)
IM1800L † 1 (25) 1,800 (2,440) 5,500 900 6.7 (48) [190] 8.5 104 20 (508) 16 (7.3)
AT1300A † 1 (25) 3,000 (4,068) 4,000 505 5.3 (38) [150] 4.4 92 21 (533) 25.6 (11.6)
AT1300AL † 1 (25) 2,700 (3,661) 4,000 505 5.3 (38) [150] 4.4 92 27 (686) 28 (12.7)
MG1200A † 3/4 (19) 1,200 (1,627) 7,000 1,200 6.4 (46) [181] 2.02 102 8 (203) 8 (3.6)
MG1200AL † 3/4 (19) 1,200 (1,627) 7,000 1,200 6.4 (46) [181] 2.02 102 10 (254) 9 (4.09)
MG1200AXL † 3/4 (19) 1,200 (1,627) 7,000 1,200 6.4 (46) [181] 2.02 102 13 (330) 10 (4.5)
MG1200AP † 3/4 (19) 1,200 (1,627) 7,000 1,200 6.4 (46) [181] 2.02 102 8 (203) 8 (3.6)
AT670 † 3/4 (19) 1,050 (1,423) 6,700 (F), 6,900 (R) 1,050 5.6 (40) [159] 19.7 99 8.5 (215) 7.5 (3.44)
AT670L † 3/4 (19) 1,050 (1,423) 6,700 (F), 6,900 (R) 1,050 5.6 (40) [159] 19.7 99 13.5 (343) 8.8 (4)
1,100
AT126 † 3/4 (19) (1,491.6) 5,500 (F), 6,000 (R) 1,000 5.3 (38) [150.1] 24.9 96 8.8 (224) 12.40 (5.62)
1,100
AT126L † 3/4 (19) (1,491.6) 5,500 (F), 6,000 (R) 1,000 5.3 (38) [150.1] 24.9 96 14.8 (376) 13.7 (6.21)
MG725 † 1/2 (13) 810 (1,098) 9,800 1,270 4.0 (29) [113] 6.6 99.9 7.7 (194) 4.8 (2.2)
MG725L † 1/2 (13) 810 (1,098) 9,800 1,270 4.0 (29) [113] 6.6 99.9 9.7 (245) 5.0 (2.3)
MG725P † 1/2 (13) 810 (1,098) 9,800 1,270 4.0 (29) [113] 6.6 99.9 7.7 (194) 4.8 (2.2)
MG3255 † 1/2 (13) 325 (440) 10,700 1,400 2.4 (17) [68] 4.54 99.1 6.1 (155) 2.8 (1.3)
MG3255L † 1/2 (13) 325 (440) 10,700 1,400 2.4 (17) [68] 4.54 99.1 7.6 (193) 2.9 (1.3)
MG3255P † 1/2 (13) 326 (442) 10,700 1,400 2.4 (17) [68] 4.54 99.1 6.1 (155) 2.8 (1.3)
MG3255LP † 1/2 (13) 325 (440) 10,700 1,400 2.4 (17) [68] 4.54 99.1 7.6 (193) 2.9 (1.3)
AT123B † 1/2 (13) 450 (610) 9,000 1,000 4.2 (30) [119] 3.35 92 7.3 (185) 5.8 (2.6)
AT123BL † 1/2 (13) 425 (576) 9,000 1,000 4.2 (30) [119] 13 92 9.2 (236) 6.1 (2.8)
AT555B † 1/2 (13) 550 (745) 7,500 1,000 2.2 (16) [62] 3.75 89 7.8 (198) 5.8 (2.6)
AT570 † 1/2 (13) 570 (773) 6,900 (F), 7,000 (R) 1,050 5.0 (36) [142] 6.08 95 7.24 (184) 4.08 (1.87)
ATC500 † 1/2 (13) 525 (712) 10,500 1,250 3.5 (25) [99] <2.5 95.5 7.8 (198) 5 (2.3)
MG325 † 3/8 (10) 325 (440) 10,700 1,400 2.4 (17) [68] 4.54 99.1 6.1 (155) 2.8 (1.3)
MG325P † 3/8 (10) 325 (440) 10,700 1,400 2.4 (17) [68] 4.54 99.1 6.1 (155) 2.8 (1.3)
AT380 † 3/8 (10) 160 (216) 10,000 1,050 3.4 (24) [95] 3.5 94 6.3 (160) 2.62 (1.19)
AT321 † 3/8 (10) 180 (224) 11,000 1,500 3.8 (27) [108] 9.8 100 6.1 (155) 2.9 (1.3)
10,000 (F), 11,000 4.4 (32.6) [125] F
AT370 † 3/8 (10) 320 (434) (R) 1,050 4.7 (34) [133] R 3.25 92 6.3 (160) 2.62 (1.19)
AT351 † 3/8 (10) 175 (237) 9,700 1,200 2.5 (18) [71] 3.09 96.6 7.6 (194) 2.5 (1.2)
AT235MCA † 1/4 (6) 25 (34) 13,000 2,900 1.67 (12) [47] <2.5 82 6.2 (158) 1.4 (.64)
气动棘轮扳手
方头尺寸， 扭力范围， 耗气量，空转速度， 震动级别， 噪音，(空转)， 长度，
型号 空转速 RPM 重量，Ibs(kg)
In.(mm) ft lbs (N•m) CFM (scfm) [I/min] m/s² dBa In.(mm)
AT705B † 1/2 (13) 5 - 50 (6 - 68) 150 3.0 (22) [85] 8.7 89 10.7 (273) 2.5 (1.14)
FAR72C † 3/8 (10) 5 - 65 (6 - 88) 225 2.7 (19) [76] 5.3 90 11.8 (300) 3 (1.3)
FAR7200 † 3/8 (10) 5 - 70 (7 - 97) 全开模式; 260 (全开模式); 4.5 (32) [127] 5.2 93 (全开模式) 12.1 (308) 3 (1.3)
5-50 (7-67) 安静模式 200 (安静模式) 87 (安静模式)
FAR2505 † 3/8 (10) 0 - 35 (6 - 47) 235 1.4 (10) [40] 6.2 85 7.7 (197) 1.4 (.6)
AT704 † 3/8 (10) 5 - 55 (6 - 75) 200 3.9 (28) [111] <3.9 101 10.5 (266) 3.3 (1.5)
AT700F † 3/8 (10) 5 - 45 (6 - 61) 150 3.0 (22) [85] 8.7 89 10.1 (257) 3.5 (1.6)
AT702 † 3/8 (10) 5 - 60 (6 - 81) 200 3.0 (22) [85] 12.6 95 10.4 (265) 2.4 (1.1)
AT738 † 3/8 (10) 0 - 60 (0 - 81) 350 4.1 (29) [113] 5.9 89 10.4 (265) 3 (1.3)
FAR2500 † 1/4 (6) 0 - 35 (6 - 47) 235 1.4 (10) [40] 6.2 84 7.8 (197) 1.4 (.66)
FAR25A † 1/4 (6) 5 - 25 (6 - 34) 225 1.4 (10) [40] 6.2 88 6.7 (171) 1.2 (.57)
AT203 † 1/4 (6) 5 - 25 (6 - 34) 285 3.1 (22) [88] <4.4 95 7.4 (188) 1.2 (.57)
AT200D † 1/4 (6) 5 - 20 (6 - 27) 150 1.4 (10) [40] 3.3 85 8.7 (222) 1.1 (.50)
AT204 † 1/4 (6) 5 - 22 (6 - 30) 275 2.4 (17) [68] <1.7 80 4.9 (127) 1.4 (.66)

气钻
夹头尺寸， 额定马力， 扭力范围， 耗气量，空转速度， 震动级别， 噪音，(空转)， 长度， 重量，
型号 空转速 RPM
In.(mm) hp (kW) ft lbs (N•m) CFM (scfm) [I/min] m/s² dBa In.(mm) Ibs(kg)
PDR5000A † 1/2 (13) 0.45 (.33) 0 - 300 (0 - 34) 450 3.8 (27) [108] <0.4 85.2 8.7 (222) 3 (1.3)
AT5000 † 1/2 (13) 0.45 (.33) 0 - 120 (0 - 14) 490 3.8 (27) [108] <2.5 82 9 (229) 3.8 (1.7)
PDR3000A † 3/8 (10) 0.45 (.33) 0 - 50 (0 - 6) 2,500 3.5 (25) [99] <3.5 83.6 7 (178) 2.5 (1.1)
AT3000 † 3/8 (10) 0.45 (.33) 0 - 40 (0 - 4.5) 1,675 3.5 (25) [99] <2.5 82 7.6 (194) 3.2 (1.4)
AT811 † 3/8 (10) 0.25 (.19) 0 - 55 (0 - 6) 1,320 3.4 (24) [95] <.8 97 8.2 (208) 2.5 (1.1)
AT184 † 5/16 (8) - - 1,800 8.4 (60) [238] <1.0 84 7.9 (201) 3.1 (1.4)
AT801MCA † 1/4 (6) 0.25 (.19) 0 - 18 (0 - 2) 1,800 1.9 (13.6) [53.8] <2.5 84 7.2 (183) 1.5 (.68)
气锤

孔径， 每分钟击打 活塞打击， 刀柄尺寸， 耗气量，空转速度， 震动级别， 噪音，(空转)， 长度， 重量，
型号
In.(mm) 次数 In. In.(mm) CFM (scfm) [I/min] m/s² dBa In.(mm) Ibs(kg)
PH3050B † 3/4 (19) 2,500 3 0.401 (10.1) 1.8 (13) [51] 2.8 103 8.9 (227) 5.9 (2.7)
AT2050 † 3/4 (19) 3,400 2.75 0.401 (10.1) 2.5 (18) [71] 3.0 99 7.4 (187) 4.6 (2.1)
†
292 www.snapon.com.cn
