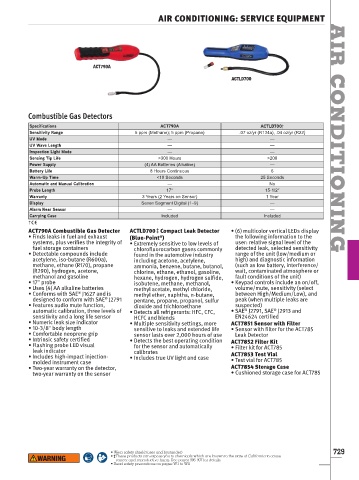

Page 731 - 实耐宝完整US版1500

AIR CONDITIONING: SERVICE EQUIPMENT

ACT790A AIR

ACTLD700

Combustible Gas Detectors
Specifications ACT790A ACTLD700†
Sensitivity Range 5 ppm (Methane); 5 ppm (Propane) .07 oz/yr (R134a), .04 oz/yr (R22)
UV Mode — —
UV Wave Length — —
Inspection Light Mode — —
Sensing Tip Life >300 Hours >200
Power Supply (4) AA Batteries (Alkaline) — CONDITIONING
Battery Life 8 Hours Continuous 6
Warm-Up Time <10 Seconds 25 Seconds
Automatic and Manual Calibration — No
Probe Length 17ʺ 15-1/2ʺ
Warranty 3 Years (2 Years on Sensor) 1 Year
Display Seven Segment Digital (1–9) —
Alarm Near Sensor — —
Carrying Case Included Included
†
ACT790A Combustible Gas Detector ACTLD700 ‡ Compact Leak Detector • (6) multicolor vertical LEDs display
• Finds leaks in fuel and exhaust (Blue-Point ) the following information to the
®
systems, plus verifies the integrity of • Extremely sensitive to low levels of user: relative signal level of the
fuel storage containers chlorofluorocarbon gases commonly detected leak, selected sensitivity
• Detectable compounds include found in the automotive industry range of the unit (low/medium or
acetylene, iso-butane (R600a), including acetone, acetylene, high) and diagnostic information
methane, ethane (R170), propane ammonia, benzene, butane, butanol, (such as low battery, interference/
(R290), hydrogen, acetone, chlorine, ethane, ethanol, gasoline, wait, contaminated atmosphere or
methanol and gasoline hexane, hydrogen, hydrogen sulfide, fault conditions of the unit)
• 17ʺ probe isobutene, methane, methanol, • Keypad controls include an on/off,
• Uses (4( AA alkaline batteries methyl acetate, methyl chloride, volume/mute, sensitivity (select
• Conforms with SAE J1627 and is methyl ether, naphtha, n-butane, between High/Medium/Low), and
®
designed to conform with SAE J2791 pentane, propane, propanol, sulfur peak (when multiple leaks are
®
• Features audio mute function, dioxide and trichloroethane suspected)
automatic calibration, three levels of • Detects all refrigerants: HFC, CFC, • SAE J2791, SAE J2913 and
®
®
sensitivity and a long life sensor HCFC and blends EN24624 certified
• Numeric leak size indicator • Multiple sensitivity settings, more ACT7851 Sensor with Filter
• 10-3/8ʺ body length sensitive to leaks and extended life • Sensor with filter for the ACT785
• Comfortable neoprene grip sensor lasts over 2,000 hours of use Leak Detector
• Intrinsic safety certified • Detects the best operating condition ACT7852 Filter Kit
• Flashing probe LED visual for the sensor and automatically • Filter kit for ACT785
leak indicator calibrates
• Includes high-impact injection- • Includes true UV light and case ACT7853 Test Vial
molded instrument case • Test vial for ACT785
• Two-year warranty on the detector, ACT7854 Storage Case
two-year warranty on the sensor • Cushioned storage case for ACT785

• Wear safety shield (user and bystander) 729
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
