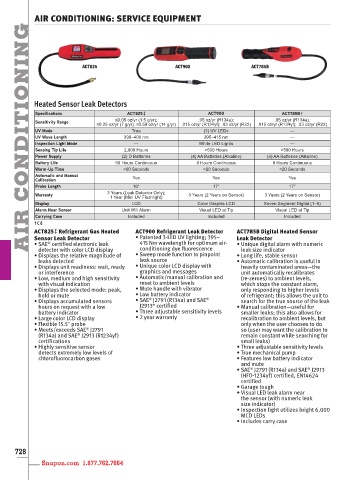

Page 730 - 实耐宝完整US版1500

AIR CONDITIONING: SERVICE EQUIPMENT
CONDITIONING

ACT825 ACT900 ACT785B

Heated Sensor Leak Detectors
Specifications ACT825 ‡ ACT900 ACT785B †
≤0.05 oz/yr (1.5 g/yr); .05 oz/yr (R134a); .05 oz/yr (R134a);
Sensitivity Range
≤0.25 oz/yr (7 g/yr); ≤0.50 oz/yr (14 g/yr) .015 oz/yr (R134yf); .03 oz/yr (R22) .015 oz/yr (R134yf); .03 oz/yr (R22)
UV Mode True (3) UV LEDs —
UV Wave Length 390–400 nm 395–415 nm —
Inspection Light Mode — White LED Lights —
Sensing Tip Life 2,000 Hours >500 Hours >500 Hours
Power Supply (2) D Batteries (4) AA Batteries (Alkaline) (4) AA Batteries (Alkaline)
Battery Life 60 Hours Continuous 8 Hours Continuous 8 Hours Continuous
Warm-Up Time <60 Seconds <20 Seconds <20 Seconds
Automatic and Manual Yes Yes Yes
Calibration
Probe Length 16ʺ 17ʺ 17ʺ
3 Years (Leak Detector Only);
Warranty 3 Years (2 Years on Sensor) 3 Years (2 Years on Sensor)
1 Year (Mini UV Flashlight)
LCD
Display Unit Will Alarm Color Graphic LCD Seven Segment Digital (1–9)
Visual LED at Tip
Visual LED at Tip
Alarm Near Sensor
AIR † ® ACT900 Refrigerant Leak Detector ACT785B Digital Heated Sensor
Carrying Case
Included
Included
Included
ACT825 ‡ Refrigerant Gas Heated
• Patented 3-LED UV lighting; 395–
Leak Detector
Sensor Leak Detector
415 Nm wavelength for optimum air-
• SAE certified electronic leak
conditioning dye fluorescence
detector with color LCD display
leak size indicator
• Long life, stable sensor
• Displays the relative magnitude of • Sweep mode function to pinpoint • Unique digital alarm with numeric
leaks detected leak source • Automatic calibration is useful in
• Displays unit readiness: wait, ready • Unique color LCD display with heavily contaminated areas—the
or interference graphics and messages unit automatically recalibrates
• Low, medium and high sensitivity • Automatic/manual calibration and (re-zeroes) to ambient levels,
with visual indication reset to ambient levels which stops the constant alarm,
• Displays the selected mode: peak, • Mute handle with vibrator only responding to higher levels
hold or mute • Low battery indicator of refrigerant; this allows the unit to
®
®
• Displays accumulated sensors • SAE J2791 (R134a) and SAE search for the true source of the leak
hours on request with a low J2913* certified • Manual calibration—useful for
battery indicator • Three adjustable sensitivity levels smaller leaks; this also allows for
• Large color LCD display • 2 year warranty recalibration to ambient levels, but
• Flexible 15.5ʺ probe only when the user chooses to do
®
• Meets/exceeds SAE J2791 so (user may want the calibration to
®
(R134a) and SAE J2913 (R1234yf) remain constant while searching for
certifications small leaks)
• Highly sensitive sensor • Three adjustable sensitivity levels
detects extremely low levels of • True mechanical pump
chlorofluorocarbon gases • Features low battery indicator
and mute
®
• SAE J2791 (R134a) and SAE J2913
®
(HFO-1234yf) certified, EN14624
certified
• Garage tough
• Visual LED leak alarm near
the sensor (with numeric leak
size indicator)
• Inspection light utilizes bright 6,000
MCD LEDs
• Includes carry case
728
