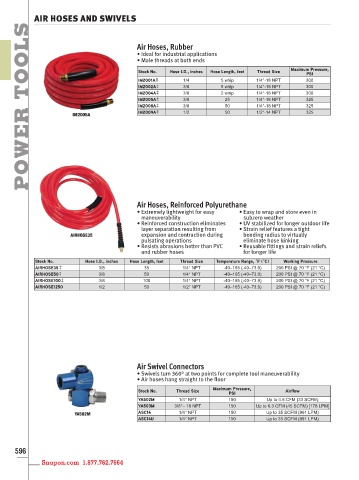

AIR HOSES AND SWIVELS
TOOLS Air Hoses, Rubber Hose Length, feet 1/4ʺ-18 NPT Maximum Pressure,

• Ideal for industrial applications
• Male threads at both ends
Thread Size
Stock No.
Hose I.D., inches
PSI
IM2001A ‡
1/4
300
5 whip
IM2002A ‡
IM2004A ‡
2 whip
3/8
300
1/4ʺ-18 NPT
IM2005A ‡
1/4ʺ-18 NPT
3/8
325
25
IM2008A ‡ 3/8 5 whip 1/4ʺ-18 NPT 300
1/4ʺ-18 NPT
3/8
50
325
POWER
IM2009A ‡
50
325
1/2
1/2ʺ-14 NPT
IM2005A
Air Hoses, Reinforced Polyurethane
• Extremely lightweight for easy • Easy to wrap and store even in
maneuverability subzero weather
• Reinforced construction eliminates • UV stabilized for longer outdoor life
layer separation resulting from • Strain relief features a tight
AIRHOSE35 expansion and contraction during bending radius to virtually
pulsating operations eliminate hose kinking
• Resists abrasions better than PVC • Reusable fittings and strain reliefs
and rubber hoses for longer life
Stock No. Hose I.D., inches Hose Length, feet Thread Size Temperature Range, °F (°C) Working Pressure
AIRHOSE35 ‡ 3/8 35 1/4ʺ NPT -40–165 (-40–73.9) 200 PSI @ 70 °F (21 °C)
AIRHOSE50 ‡ 3/8 50 1/4ʺ NPT -40–165 (-40–73.9) 200 PSI @ 70 °F (21 °C)
AIRHOSE100 ‡ 3/8 100 1/4ʺ NPT -40–165 (-40–73.9) 200 PSI @ 70 °F (21 °C)
AIRHOSE1250 1/2 50 1/2ʺ NPT -40–165 (-40–73.9) 200 PSI @ 70 °F (21 °C)

Air Swivel Connectors
• Swivels turn 360° at two points for complete tool maneuverability
• Air hoses hang straight to the floor
Maximum Pressure,
Stock No. Thread Size Airflow
PSI
YA502M 1/4ʺ NPT 150 Up to 4.6 CFM (33 SCFM)
YA503M 3/8ʺ– 18 NPT 150 Up to 6.3 CFM (45 SCFM) [178 LPM]
YA502M ASC14 1/4ʺ NPT 150 Up to 35 SCFM (991 LPM)
ASC14U 1/4ʺ NPT 150 Up to 35 SCFM (991 LPM)
