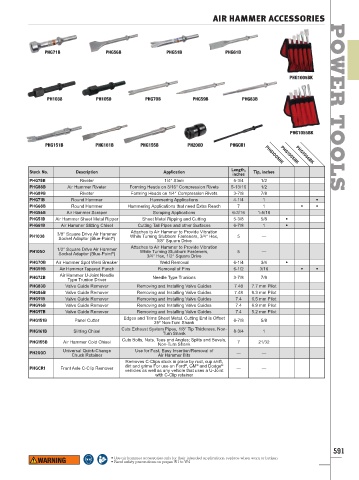

AIR HAMMER ACCESSORIES

PHG71B PHG56B PHG51B PHG61B POWER

PHG1005BK

PH1038 PH1050 PHG70B PHG59B PHG83B

PHG1055BK

PHG151B PHG161B PHG155B PH200D PHGCR1 PHG1005BK PHG1066BK TOOLS

PHG1055BK
Length,
Stock No. Description Application Tip, inches
inches
PHG78B Riveter 1/4ʺ Stem 5-3/4 1/2
PHG88B Air Hammer Riveter Forming Heads on 3/16ʺ Compression Rivets 5-13/16 1/2
PHG89B Riveter Forming Heads on 1/4ʺ Compression Rivets 3-7/8 7/8
PHG71B Round Hammer Hammering Applications 4-1/4 1 •
PHG68B Round Hammer Hammering Applications that need Extra Reach 7 1 • •
PHG56B Air Hammer Scraper Scraping Applications 6-3/16 1-5/16
PHG51B Air Hammer Sheet Metal Ripper Sheet Metal Ripping and Cutting 5-3/8 5/8 •
PHG61B Air Hammer Slitting Chisel Cutting Tail Pipes and other Surfaces 6-7/8 1 •
Attaches to Air Hammer to Provide Vibration
3/8ʺ Square Drive Air Hammer
PH1038 While Turning Stubborn Fasteners, 3/4ʺ Hex, 5 —
®
Socket Adaptor (Blue-Point )
3/8ʺ Square Drive
Attaches to Air Hammer to Provide Vibration
1/2ʺ Square Drive Air Hammer
PH1050 Socket Adaptor (Blue-Point ) While Turning Stubborn Fasteners, 5 —
®
3/4ʺ Hex, 1/2ʺ Square Drive
PHG70B Air Hammer Spot Weld Breaker Weld Removal 6-1/4 3/4 •
PHG59B Air Hammer Tapered Punch Removal of Pins 6-1/2 3/16 • •
Air Hammer U-Joint Needle
PHG72B Needle Type Trunions 3-7/8 7/8
Type Trunion Driver
PHG83B Valve Guide Remover Removing and Installing Valve Guides 7.48 7.7 mm Pilot
PHG86B Valve Guide Remover Removing and Installing Valve Guides 7.48 9.3 mm Pilot
PHG91B Valve Guide Remover Removing and Installing Valve Guides 7.4 6.5 mm Pilot
PHG96B Valve Guide Remover Removing and Installing Valve Guides 7.4 6.9 mm Pilot
PHG97B Valve Guide Remover Removing and Installing Valve Guides 7.4 5.2 mm Pilot
Edges and Trims Sheet Metal. Cutting End is Offset
PHG151B Panel Cutter 25º Non-Turn Shank 6-7/8 5/8
Cuts Exhaust System Pipes, 1/8ʺ Tip Thickness. Non-
PHG161B Slitting Chisel 8-3/4 1
Turn Shank
Cuts Bolts, Nuts, Tees and Angles; Splits and Bevels,
PHG155B Air Hammer Cold Chisel 7 21/32
Non-Turn Shank
Universal Quick-Change Use for Fast, Easy Insertion/Removal of
PH200D — —
Chuck Retainer Air Hammer Bits
Removes C-Clips stuck in place by rust, cup shift,
®
®
®
PHGCR1 Front Axle C-Clip Remover dirt and grime For use on Ford , GM and Dodge — —
vehicles as well as any vehicle that uses a U-Joint
with C-Clip retainer

591
• Use air hammer accessories only for their intended applications, replace when worn or broken
• Read safety precautions on pages W1 to W4
