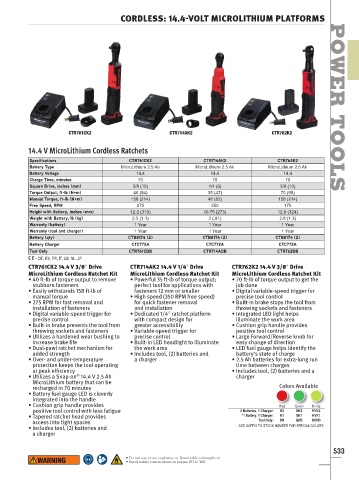

CORDLESS: 14.4-VOLT MICROLITHIUM PLATFORMS POWER

CTR761CK2 CTR714AK2 CTR762K2

14.4 V MicroLithium Cordless Ratchets TOOLS

Specifications CTR761CK2 CTR714AK2 CTR762K2
Battery Type MicroLithium 2.5 Ah MicroLithium 2.5 Ah MicroLithium 2.5 Ah
Battery Voltage 14.4 14.4 14.4
Charge Time, minutes 70 70 70
Square Drive, inches (mm) 3/8 (10) 1/4 (6) 3/8 (10)
Torque Output, ft-lb (N•m) 40 (54) 35 (47) 70 (95)
Manual Torque, ft-lb (N•m) 158 (214) 46 (62) 158 (214)
Free Speed, RPM 275 350 175
Height with Battery, inches (mm) 12.2 (310) 10.75 (273) 12.8 (324)
Weight with Battery, lb (kg) 2.5 (1.1) 2 (.91) 2.8 (1.3)
Warranty (battery) 1 Year 1 Year 1 Year
Warranty (tool and charger) 1 Year 1 Year 1 Year
Battery (qty) CTB8174 (2) CTB8174 (2) CTB8174 (2)
Battery Charger CTC772A CTC772A CTC772A
Tool Only CTR761CDB CTR714ADB CTR762DB
– DE, ES, FR, IT, GB, NL, JP
CTR761CK2 14.4 V 3/8ʺ Drive CTR714AK2 14.4 V 1/4ʺ Drive CTR762K2 14.4 V 3/8ʺ Drive
MicroLithium Cordless Ratchet Kit MicroLithium Cordless Ratchet Kit MicroLithium Cordless Ratchet Kit
• 40 ft-lb of torque output to remove • Powerful 35 ft-lb of torque output; • 70 ft-lb of torque output to get the
stubborn fasteners perfect tool for applications with job done
• Easily withstands 158 ft-lb of fasteners 12 mm or smaller • Digital variable-speed trigger for
manual torque • High speed (350 RPM free speed) precise tool control
• 275 RPM for fast removal and for quick fastener removal • Built-in brake stops the tool from
installation of fasteners and installation throwing sockets and fasteners
• Digital variable-speed trigger for • Dedicated 1/4ʺ ratchet platform • Integrated LED light helps
precise control with compact design for illuminate the work area
• Built-in brake prevents the tool from greater accessibility • Cushion grip handle provides
throwing sockets and fasteners • Variable-speed trigger for positive tool control
• Utilizes a hardened wear bushing to precise control • Large Forward/Reverse knob for
increase brake life • Built-in LED headlight to illuminate easy change of direction
• Dual-pawl ratchet mechanism for the work area • LED fuel gauge helps identify the
added strength • Includes tool, (2) batteries and battery’s state of charge
• Over- and under-temperature a charger • 2.5 Ah batteries for extra-long run
protection keeps the tool operating time between charges
at peak efficiency • Includes tool, (2) batteries and a
• Utilizes a Snap-on 14.4 V 2.5 Ah charger
®
MicroLithium battery that can be
recharged in 70 minutes Colors Available
• Battery fuel gauge LED is cleverly
integrated into the handle
• Cushion grip handle provides Red Green Hi-Viz
positive tool control with less fatigue 2 Batteries, 1 Charger: K2 GK2 HVK2
• Tapered ratchet head provides *1 Battery, 1 Charger: K1 GK1 HVK1
access into tight spaces Tool Only: DB GDB HVDB
• Includes tool, (2) batteries and ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
a charger

533
• Do not use in an explosive or flammable atmosphere
• Read safety precautions on pages W1 to W4
