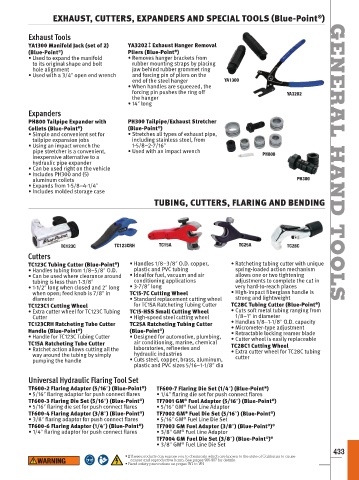

EXHAUST, CUTTERS, EXPANDERS AND SPECIAL TOOLS (Blue-Point )
®

Exhaust Tools
YA1300 Manifold Jack (set of 2) YA3202 ‡ Exhaust Hanger Removal
®
®
(Blue-Point ) Pliers (Blue-Point )
• Used to expand the manifold • Removes hanger brackets from
to its original shape and bolt rubber mounting straps by placing
hole alignment jaw behind rubber grommet ring
• Used with a 3/4ʺ open end wrench and forcing pin of pliers on the
end of the steel hanger YA1300 GENERAL
• When handles are squeezed, the
forcing pin pushes the ring off YA3202
the hanger
• 14ʺ long
Expanders
PH800 Tailpipe Expander with PH300 Tailpipe/Exhaust Stretcher
Collets (Blue-Point ) (Blue-Point )
®
®
• Simple and convenient set for • Stretches all types of exhaust pipe,
tailpipe expansion jobs including stainless steel, from
• Using an impact wrench the 1-5/8–2-7/16ʺ
pipe stretcher is a convenient, • Used with an impact wrench PH800
inexpensive alternative to a
hydraulic pipe expander
• Can be used right on the vehicle
• Includes PH300 and (5)
aluminum collets PH300 HAND
• Expands from 1-5/8–4-1/4ʺ
• Includes molded storage case
TUBING, CUTTERS, FLARING AND BENDING

TC123C TC123CRH TC15A TC25A TC28C
Cutters
TC123C Tubing Cutter (Blue-Point ) • Handles 1/8–3/8ʺ O.D. copper, • Ratcheting tubing cutter with unique TOOLS
®
• Handles tubing from 1/8–5/8ʺ O.D. plastic and PVC tubing spring-loaded action mechanism
• Can be used where clearance around • Ideal for fuel, vacuum and air allows one or two tightening
tubing is less than 1-3/8ʺ conditioning applications adjustments to complete the cut in
• 1-1/2ʺ long when closed and 2ʺ long • 3-7/8ʺ long very hard-to-reach places
when open; feed knob is 7/8ʺ in TC15-7C Cutting Wheel • High-impact fiberglass handle is
diameter • Standard replacement cutting wheel strong and lightweight
®
TC123C1 Cutting Wheel for TC15A Ratcheting Tubing Cutter TC28C Tubing Cutter (Blue-Point )
• Extra cutter wheel for TC123C Tubing TC15-HSS Small Cutting Wheel • Cuts soft metal tubing ranging from
Cutter • High-speed steel cutting wheel 1/8–1ʺ in diameter
TC123CRH Ratcheting Tube Cutter TC25A Ratcheting Tubing Cutter • Handles 1/8–1-1/8ʺ O.D. capacity
®
®
Handle (Blue-Point ) (Blue-Point ) • Micrometer-type adjustment
• Retractable locking reamer blade
• Handle for TC123C Tubing Cutter • Designed for automotive, plumbing, • Cutter wheel is easily replaceable
TC15A Ratcheting Tube Cutter air conditioning, marine, chemical TC28C1 Cutting Wheel
• Ratchet action allows cutting all the laboratories, refineries and • Extra cutter wheel for TC28C tubing
way around the tubing by simply hydraulic industries cutter
pumping the handle • Cuts steel, copper, brass, aluminum,
plastic and PVC sizes 5/16–1-1/8ʺ dia
Universal Hydraulic Flaring Tool Set
TF600-2 Flaring Adaptor (5/16ʺ) (Blue-Point ) TF600-7 Flaring Die Set (1/4ʺ) (Blue-Point )
®
®
• 5/16ʺ flaring adaptor for push connect flares • 1/4ʺ flaring die set for push connect flares
®
®
TF600-3 Flaring Die Set (5/16ʺ) (Blue-Point ) TF7001 GM Fuel Adaptor (5/16ʺ) (Blue-Point )
®
• 5/16ʺ flaring die set for push connect flares • 5/16ʺ GM Fuel Line Adaptor
®
TF600-4 Flaring Adaptor (3/8ʺ) (Blue-Point ) TF7002 GM Fuel Die Set (5/16ʺ) (Blue-Point )
®
®
®
• 3/8ʺ flaring adaptor for push connect flares • 5/16ʺ GM Fuel Line Die Set
®
TF600-6 Flaring Adaptor (1/4ʺ) (Blue-Point ) TF7003 GM Fuel Adaptor (3/8ʺ) (Blue-Point )
® ®
®
®
• 1/4ʺ flaring adaptor for push connect flares • 3/8ʺ GM Fuel Line Adaptor
® ®
TF7004 GM Fuel Die Set (3/8ʺ) (Blue-Point )
®
• 3/8ʺ GM Fuel Line Die Set
433
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
