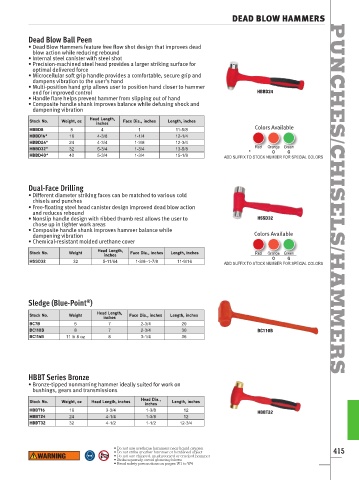

Page 417 - 实耐宝完整US版1500

DEAD BLOW HAMMERS

Dead Blow Ball Peen
• Dead Blow Hammers feature free flow shot design that improves dead
blow action while reducing rebound
• Internal steel canister with steel shot
• Precision-machined steel head provides a larger striking surface for
optimal delivered force
• Microcellular soft grip handle provides a comfortable, secure grip and
dampens vibration to the user’s hand
• Multi-position hand grip allows user to position hand closer to hammer
end for improved control HBBD24
• Handle flare helps prevent hammer from slipping out of hand
• Composite handle shank improves balance while defusing shock and
dampening vibration
Head Length,
Stock No. Weight, oz Face Dia., inches Length, inches
inches
HBBD8 8 4 1 11-5/8 Colors Available
HBBD16* 16 4-3/8 1-1/4 12-1/4
HBBD24* 24 4-3/4 1-3/8 12-3/4
HBBD32* 32 5-3/4 1-3/4 13-5/8 * Red Orange Green
G
O
HBBD40* 40 5-3/4 1-3/4 15-1/8 ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS

Dual-Face Drilling
• Different diameter striking faces can be matched to various cold
chisels and punches PUNCHES/CHISELS/HAMMERS
• Free-floating steel head canister design improved dead blow action
and reduces rebound
• Nonslip handle design with ribbed thumb rest allows the user to HSSD32
chose up in tighter work areas
• Composite handle shank improves hammer balance while
dampening vibration Colors Available
• Chemical-resistant molded urethane cover
Head Length,
Stock No. Weight Face Dia., inches Length, inches Red Orange Green
inches
G
O
HSSD32 32 5-11/64 1-3/8–1-7/8 11-9/16 ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS

®
Sledge (Blue-Point )
Head Length,
Stock No. Weight Face Dia., inches Length, inches
inches
BC7B 5 7 2-3/4 20
BC110B 8 7 2-3/4 30 BC110B
BC114B 11 lb 8 oz 8 3-1/4 36

HBBT Series Bronze
• Bronze-tipped nonmarring hammer ideally suited for work on
bushings, gears and transmissions
Head Dia.,
Stock No. Weight, oz Head Length, inches Length, inches
inches
HBBT16 16 3-3/4 1-3/8 12 HBBT32
HBBT24 24 4-1/4 1-3/8 12
HBBT32 32 4-1/2 1-1/2 12-3/4

• Do not use urethane hammers near liquid oxygen
• Do not strike another hammer or hardened object 415
• Do not use chipped, mushroomed or cracked hammer
• Strike squarely, avoid glancing blows
• Read safety precautions on pages W1 to W4
