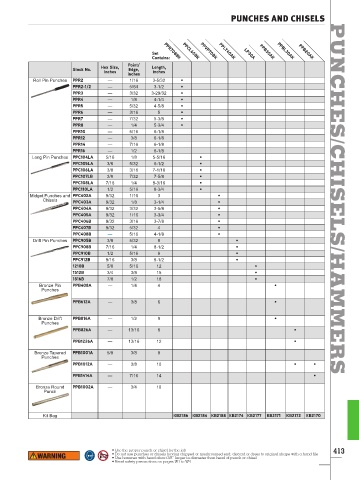

Page 415 - 实耐宝完整US版1500

PUNCHES AND CHISELS

Set PPR708BK PPCL60BK PPVP70BK PPLT40AK LP30A PPB30AK PPBL30AK PPB20AK
Contains:
Point/
Hex Size, Length,
Stock No. Edge,
inches inches
inches
Roll Pin Punches PPR2 — 1/16 3-5/32 •
PPR2-1/2 — 5/64 3-1/2 •
PPR3 — 3/32 3-29/32 •
PPR4 — 1/8 4-1/4 •
PPR5 — 5/32 4-5/8 •
PPR6 — 3/16 5 •
PPR7 — 7/32 5-3/8 •
PPR8 — 1/4 5-3/4 •
PPR10 — 5/16 6-1/8
PPR12 — 3/8 6-1/8
PPR14 — 7/16 6-1/8
PPR16 — 1/2 6-1/8
Long Pin Punches PPC104LA 5/16 1/8 5-5/16 •
PPC105LA 3/8 5/32 6-1/2 •
PPC106LA 3/8 3/16 7-1/16 •
PPC107LB 3/8 7/32 7-5/8 •
PPC108LA 7/16 1/4 8-3/16 •
PPC110LA 1/2 5/16 8-3/4 •
Midget Punches and PPC402A 9/32 1/16 3 •
Chisels PPC403A 9/32 1/8 3-1/4 • PUNCHES/CHISELS/HAMMERS
PPC404A 9/32 3/32 3-5/8 •
PPC405A 9/32 1/16 3-3/4 •
PPC406B 9/32 3/16 3-7/8 •
PPC407B 9/32 5/32 4 •
PPC408B — 5/16 4-1/8 •
Drift Pin Punches PPC905B 3/8 5/32 8 •
PPC908B 7/16 1/4 8-1/2 •
PPC910B 1/2 5/16 9 •
PPC912B 9/16 3/8 9-1/2 •
1210B 5/8 5/16 12 •
1512B 3/4 3/8 15 •
1816B 7/8 1/2 18 •
Bronze Pin PPB408A — 1/4 4 •
Punches

PPB612A — 3/8 6 •

Bronze Drift PPB816A — 1/2 8 •
Punches
PPB826A — 13/16 8 •
PPB1226A — 13/16 12 •

Bronze Tapered PPB1001A 5/8 3/8 8
Punches
PPB1012A — 3/8 10 • •
PPB1414A — 7/16 14 •
Bronze Round PPB1002A — 3/4 10
Punch

Kit Bag KB2186 KB2184 KB2188 KB2174 KB2177 KB2171 KB2172 KB2170

• Use the proper punch or chisel for the job 413
• Do not use punches or chisels having chipped or mushroomed end; discard or dress to original shape with a hand file
• Use hammer with head about 3/8” larger in diameter than head of punch or chisel
• Read safety precautions on pages W1 to W4
