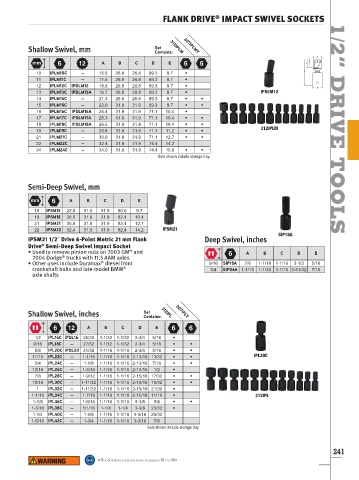

FLANK DRIVE IMPACT SWIVEL SOCKETS
®

Shallow Swivel, mm Set 312IPLM 307IPLMY 1/2”
Contains:
A B C D E

10 IPLM10C — 15.5 26.8 26.8 69.3 9.7 •
11 IPLM11C — 17.5 26.8 26.8 69.3 9.7 •
12 IPLM12C IPDLM12 18.0 26.8 26.8 69.3 9.7 •
13 IPLM13C IPDLM13A 19.7 26.8 26.8 69.3 9.7 • IPDLM12
14 IPLM14C — 21.3 26.8 26.8 69.3 9.7 • •
15 IPLM15C — 23.0 31.9 31.9 69.3 9.7 • •
16 IPLM16C IPDLM16A 24.4 31.9 31.9 71.1 10.4 • DRIVE
17 IPLM17C IPDLM17A 25.3 31.9 31.9 71.1 10.4 • •
18 IPLM18C IPDLM18A 26.5 31.9 31.9 71.1 10.4 • •
19 IPLM19C — 26.8 31.9 31.9 71.1 11.2 • • 312IPLM
21 IPLM21C — 30.0 31.9 31.9 71.1 12.7 • •
22 IPLM22C — 32.4 31.9 31.9 74.4 14.2
24 IPLM24C — 34.0 31.9 31.9 74.4 15.0 • •
Sets shown include storage tray.

Semi-Deep Swivel, mm

A B C D E TOOLS
15 IPSM15 23.0 31.9 31.9 80.6 9.7
18 IPSM18 26.5 31.9 31.9 82.4 10.4
21 IPSM21 30.0 31.9 31.9 82.4 12.7
22 IPSM22 32.4 31.9 31.9 82.4 14.2 IPSM21
SIP18A
IPSM21 1/2ʺ Drive 6-Point Metric 21 mm Flank Deep Swivel, inches
Drive Semi-Deep Swivel Impact Socket
®
®
• Used to remove pinion nuts on 2003 GM and A B C D E
®
2004 Dodge trucks with 11.5 AAM axles
®
• Other uses include Duramax diesel front 9/16 SIP18A 7/8 1-1/16 1-1/16 3-1/2 5/16
®
crankshaft bolts and late-model BMW 3/4 SIP24A 1-1/16 1-1/16 1-1/16 3-31/32 7/16
axle shafts

Shallow Swivel, inches Set 312IPL 307IPLY
Contains:
A B C D E

1/2 IPL16C IPDL16 25/32 1-1/32 1-1/32 2-3/4 5/16 •
9/16 IPL18C — 27/32 1-1/32 1-1/32 2-3/4 5/16 • •
5/8 IPL20C IPDL20 31/32 1-1/16 1-1/16 2-3/4 5/16 • •
11/16 IPL22C — 1-1/16 1-1/16 1-1/16 2-13/16 13/32 • • IPL20C
3/4 IPL24C — 1-1/8 1-1/16 1-1/16 2-13/16 7/16 • •
13/16 IPL26C — 1-3/16 1-1/16 1-1/16 2-13/16 1/2 •
7/8 IPL28C — 1-9/32 1-1/16 1-1/16 2-15/16 17/32 • •
15/16 IPL30C — 1-11/32 1-1/16 1-1/16 2-15/16 19/32 • •
1 IPL32C — 1-11/32 1-1/16 1-1/16 2-15/16 21/32 •
1-1/16 IPL34C — 1-7/16 1-1/16 1-1/16 2-15/16 11/16 • 312IPL
1-1/8 IPL36C — 1-9/16 1-1/16 1-1/16 3-1/8 3/4 • •
1-3/16 IPL38C — 1/1/16 1-1/4 1-1/4 3-3/8 23/32 •
1-1/4 IPL40C — 1-5/8 1-1/16 1-1/16 3-3/16 25/32
1-5/16 IPL42C — 1-3/4 1-1/16 1-1/16 3-3/16 7/8
Sets shown include storage tray.

241
• Read safety precautions on pages W1 to W4
