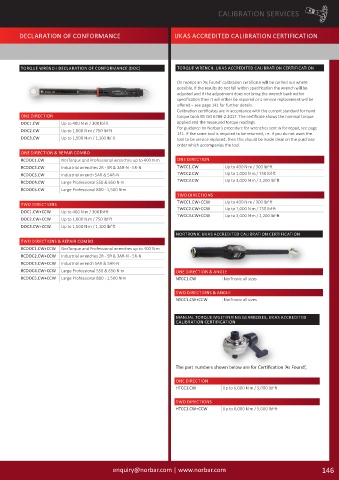

CALIBRATION SERVICES

DECLARATION OF CONFORMANCE UKAS ACCREDITED CALIBRATION CERTIFICATION

TORQUE WRENCH DECLARATION OF CONFORMANCE (DOC) TORQUE WRENCH, UKAS ACCREDITED CALIBRATION CERTIFICATION

On receipt an ‘As Found’ calibration certificate will be carried out where
possible. If the results do not fall within specification the wrench will be
adjusted and if the adjustment does not bring the wrench back within
specification then it will either be repaired or a service replacement will be
offered – see page 141 for further details.
Calibration certificates are in accordance with the current standard for hand
ONE DIRECTION torque tools BS ISO 6789-2:2017. The certificate shows the nominal torque
DOC1�CW Up to 400 N·m / 300 lbf·ft applied and the measured torque readings�
DOC2�CW Up to 1,000 N·m / 750 lbf·ft For guidance on Norbar’s procedure for wrenches sent in for repair, see page
141. If the same tool is required to be returned, i.e. if you do not want the
DOC3�CW Up to 1,500 N·m / 1,100 lbf·ft tool to be service replaced, then this should be made clear on the purchase
order which accompanies the tool�
ONE DIRECTION & REPAIR COMBO
RCDOC1�CW NorTorque and Professional wrenches up to 400 N·m ONE DIRECTION
RCDOC2�CW Industrial wrenches 2R - 5R & 3AR-N - 5R-N TWCC1�CW Up to 400 N�m / 300 lbf�ft
RCDOC3�CW Industrial wrench 5AR & 5AR-N TWCC2�CW Up to 1,000 N�m / 750 lbf�ft
RCDOC4�CW Large Professional 550 & 650 N·m TWCC3�CW Up to 3,000 N�m / 2,200 lbf�ft
RCDOC5�CW Large Professional 800 - 1,500 N·m
TWO DIRECTIONS
TWO DIRECTIONS TWCC1�CW+CCW Up to 400 N�m / 300 lbf�ft
DOC1�CW+CCW Up to 400 N·m / 300 lbf·ft TWCC2�CW+CCW Up to 1,000 N�m / 750 lbf�ft
TWCC3�CW+CCW
DOC2�CW+CCW Up to 1,000 N·m / 750 lbf·ft Up to 3,000 N�m / 2,200 lbf�ft
DOC3�CW+CCW Up to 1,500 N·m / 1,100 lbf·ft
NORTRONIC UKAS ACCREDITED CALIBRATION CERTIFICATION
TWO DIRECTIONS & REPAIR COMBO
RCDOC1�CW+CCW NorTorque and Professional wrenches up to 400 N·m
RCDOC2�CW+CCW Industrial wrenches 2R - 5R & 3AR-N - 5R-N
RCDOC3�CW+CCW Industrial wrench 5AR & 5AR-N
RCDOC4�CW+CCW Large Professional 550 & 650 N·m ONE DIRECTION & ANGLE
RCDOC5�CW+CCW Large Professional 800 - 1,500 N·m NTCC1�CW NorTronic all sizes

TWO DIRECTIONS & ANGLE
NTCC1�CW+CCW NorTronic all sizes

MANUAL TORQUE MULTIPLYING GEARBOXES, UKAS ACCREDITED
CALIBRATION CERTIFICATION

The part numbers shown below are for Certification ‘As Found’,

ONE DIRECTION
HTCC1�CW Up to 6,000 N�m / 5,000 lbf�ft

TWO DIRECTIONS
HTCC1�CW+CCW Up to 6,000 N�m / 5,000 lbf�ft

enquiry@norbar�com | www�norbar�com 146
