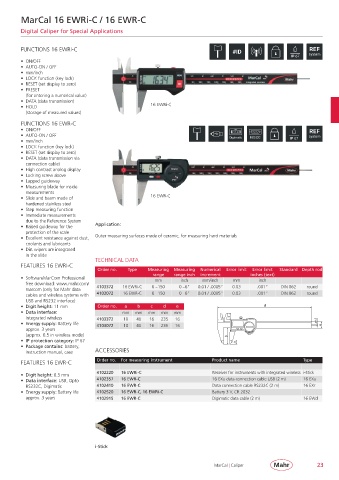

MarCal 16 EWRi-C / 16 EWR-C
MarCal 16 EWRi-C / 16 EWR-C
Digital Caliper for Special Applications

FUNCTIONS 16 EWRI-C

• ON/OFF
• AUTO-ON / OFF
• mm/inch
• LOCK function (key lock)
• RESET (set display to zero)
• PRESET
(for entering a numerical value)
• DATA (data transmission)
• HOLD 16 EWRi-C
(storage of measured values)
FUNCTIONS 16 EWR-C
• ON/OFF
• AUTO-ON / OFF
• mm/inch
• LOCK function (key lock)
• RESET (set display to zero)
• DATA (data transmission via
connection cable)
• High contrast analog display
• Locking screw above
• Lapped guideway
• Measuring blade for inside
measurements
• Slide and beam made of 16 EWR-C
hardened stainless steel
• Step measuring function
• Immediate measurements
due to the Reference System
• Raised guideway for the Application:
protection of the scale
• Excellent resistance against dust, Outer measuring surfaces made of ceramic, for measuring hard materials
coolants and lubricants
• Dirt wipers are integrated
in the slide
TECHNICAL DATA
FEATURES 16 EWRI-C
Order no. Type Measuring Measuring Numerical Error limit Error limit Standard Depth rod
range range inch increment inches (text)
• SoftwareMarCom Professional mm inch mm/inch mm inch
free download: www.mahr.com/ 4103372 16 EWRi-C 0 – 150 0 – 6” 0.01 / .0005” 0.03 .001” DIN 862 round
marcom (only for Mahr data
cables and wireless systems with 4103072 16 EWR-C 0 – 150 0 – 6” 0.01 / .0005” 0.03 .001” DIN 862 round
USB and RS232 interface)
• Digit height: 11 mm Order no. a b c d e
• Data interface: mm mm mm mm mm
Integrated wireless 4103372 10 40 16 235 16
• Energy supply: Battery life 4103072 10 40 16 235 16
approx. 3 years
(approx. 0.5 in wireless mode)
• IP protection category: IP 67
• Package contains: battery,
instruction manual, case ACCESSORIES
FEATURES 16 EWR-C Order no. For measuring instrument Product name Type

4102220 16 EWRi-C Receiver for instruments with integrated wireless i-Stick
• Digit height: 8.5 mm
• Data interface: USB, Opto 4102357 16 EWR-C 16 EXu data connection cable USB (2 m) 16 EXu
RS232C, Digimatic 4102410 16 EWR-C Data connection cable RS232C (2 m) 16 EXr
• Energy supply: Battery life 4102520 16 EWR-C, 16 EWRi-C Battery 3 V, CR 2032
approx. 3 years 4102915 16 EWR-C Digimatic data cable (2 m) 16 EWd

i-Stick

MarCal | Caliper 23
