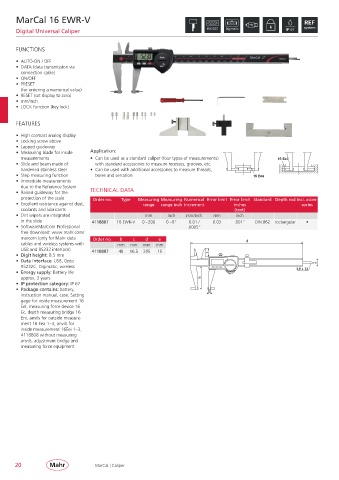

MarCal 16 EWR-V

Digital Universal Caliper

FUNCTIONS

• AUTO-ON / OFF
• DATA (data transmission via
connection cable)
• ON/OFF
• PRESET
(for entering a numerical value)
• RESET (set display to zero)
• mm/inch
• LOCK function (key lock)

FEATURES

• High contrast analog display
• Locking screw above
• Lapped guideway
• Measuring blade for inside Application:
measurements • Can be used as a standard caliper (four types of measurements) 16 Eei
• Slide and beam made of with standard accessories to measure recesses, grooves, etc.
hardened stainless steel • Can be used with additional accessories to measure threads,
• Step measuring function bores and serration 16 Eea
• Immediate measurements
due to the Reference System
• Raised guideway for the TECHNICAL DATA
protection of the scale Order no. Type Measuring Measuring Numerical Error limit Error limit Standard Depth rod Incl. acces-
• Excellent resistance against dust, range range inch increment inches sories
coolants and lubricants (text)
• Dirt wipers are integrated mm inch mm/inch mm inch
in the slide 4118807 16 EWR-V 0 – 200 0 – 8” 0.01 / 0.03 .001” DIN 862 rectangular •
• SoftwareMarCom Professional .0005”
free download: www.mahr.com/
marcom (only for Mahr data Order no. b c d e d
cables and wireless systems with mm mm mm mm
USB and RS232 interface) 4118807 48 16.5 285 16
• Digit height: 8.5 mm c
• Data interface: USB, Opto
e
RS232C, Digimatic, wireless
• Energy supply: Battery life
approx. 3 years b
• IP protection category: IP 67
• Package contains: battery,
instruction manual, case, Setting
gage for inside measurement 16
Eel, measuring force device 16
Ec, depth measuring bridge 16
Em, anvils for outside measure-
ment 16 Eea 1– 3, anvils for
inside measurement 16Eei 1– 3,
4118808 without measuring
anvils, adjustment bridge and
measuring force equipment

20 MarCal | Caliper
