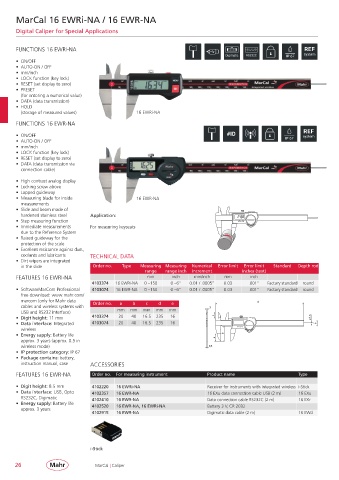

MarCal 16 EWRi-NA / 16 EWR-NA
MarCal 16 EWRi-NA / 16 EWR-NA
Digital Caliper for Special Applications

FUNCTIONS 16 EWRI-NA

• ON/OFF
• AUTO-ON / OFF
• mm/inch
• LOCK function (key lock)
• RESET (set display to zero)
• PRESET
(for entering a numerical value)
• DATA (data transmission)
• HOLD
(storage of measured values) 16 EWRi-NA
FUNCTIONS 16 EWR-NA

• ON/OFF
• AUTO-ON / OFF
• mm/inch
• LOCK function (key lock)
• RESET (set display to zero)
• DATA (data transmission via
connection cable)
• High contrast analog display
• Locking screw above
• Lapped guideway
• Measuring blade for inside 16 EWR-NA
measurements
• Slide and beam made of
hardened stainless steel Application:
• Step measuring function
• Immediate measurements For measuring keyseats
due to the Reference System
• Raised guideway for the
protection of the scale
• Excellent resistance against dust,
coolants and lubricants TECHNICAL DATA
• Dirt wipers are integrated
in the slide Order no. Type Measuring Measuring Numerical Error limit Error limit Standard Depth rod
range range inch increment inches (text)
FEATURES 16 EWRI-NA mm inch mm/inch mm inch
4103374 16 EWRi-NA 0 – 150 0 – 6” 0.01 / .0005” 0.03 .001” Factory standard round
• SoftwareMarCom Professional 4103074 16 EWR-NA 0 – 150 0 – 6” 0.01 / .0005” 0.03 .001” Factory standard round
free download: www.mahr.com/
marcom (only for Mahr data Order no. a b c d e d
cables and wireless systems with
USB and RS232 interface) mm mm mm mm mm
• Digit height: 11 mm 4103374 20 40 16.5 235 16 c
• Data interface: Integrated 4103074 20 40 16.5 235 16 e
wireless
• Energy supply: Battery life b
a
approx. 3 years (approx. 0.5 in
wireless mode)
• IP protection category: IP 67
• Package contains: battery,
instruction manual, case ACCESSORIES
FEATURES 16 EWR-NA Order no. For measuring instrument Product name Type

• Digit height: 8.5 mm 4102220 16 EWRi-NA Receiver for instruments with integrated wireless i-Stick
• Data interface: USB, Opto 4102357 16 EWR-NA 16 EXu data connection cable USB (2 m) 16 EXu
RS232C, Digimatic 4102410 16 EWR-NA Data connection cable RS232C (2 m) 16 EXr
• Energy supply: Battery life 4102520 16 EWR-NA, 16 EWRi-NA Battery 3 V, CR 2032
approx. 3 years
4102915 16 EWR-NA Digimatic data cable (2 m) 16 EWd

i-Stick

26 MarCal | Caliper
