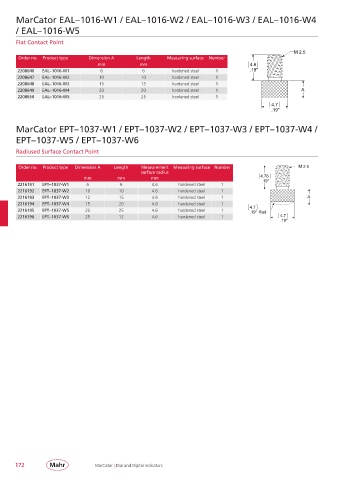

MarCator EAL– 1016-W1 / EAL– 1016-W2 / EAL– 1016-W3 / EAL– 1016-W4

/ EAL– 1016-W5
Flat Contact Point

M 2.5
Order no. Product type Dimension A Length Measuring surface Number
mm mm 4.8
2208646 EAL– 1016-W1 6 6 hardened steel 1 .19"
2208647 EAL– 1016-W2 10 10 hardened steel 1
2208648 EAL– 1016-W3 15 15 hardened steel 1
2208649 EAL– 1016-W4 20 20 hardened steel 1 A
2208650 EAL– 1016-W5 25 25 hardened steel 1
4.7
.19"

MarCator EPT– 1037-W1 / EPT– 1037-W2 / EPT– 1037-W3 / EPT– 1037-W4 /

EPT– 1037-W5 / EPT– 1037-W6
Radiused Surface Contact Point

Order no. Product type Dimension A Length Measurement Measuring surface Number M 2.5
surface radius
mm mm mm 4.76
.19"
2216191 EPT– 1037-W1 6 6 4.6 hardened steel 1
2216192 EPT– 1037-W2 10 10 4.6 hardened steel 1
2216193 EPT– 1037-W3 12 15 4.6 hardened steel 1 A
2216194 EPT– 1037-W4 15 20 4.6 hardened steel 1 4.7
2216195 EPT– 1037-W5 20 25 4.6 hardened steel 1 .19" Rad.
2216196 EPT– 1037-W6 25 12 4.6 hardened steel 1 4.7
.19"

172 MarCator | Dial and Digital Indicators
