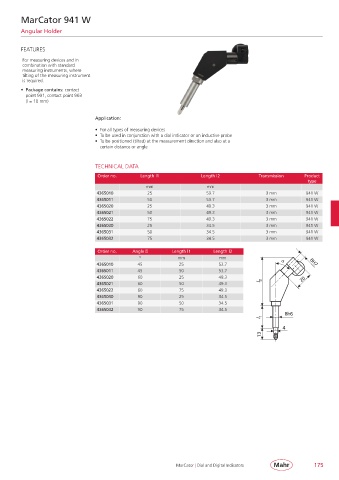

MarCator 941 W

Angular Holder

FEATURES

For measuring devices and in
combination with standard
measuring instruments, where
tilting of the measuring instrument
is required.
• Package contains: contact
point 901, contact point 903
(l = 10 mm)

Application:

• For all types of measuring devices
• To be used in conjunction with a dial indicator or an inductive probe
• To be positioned (tilted) at the measurement direction and also at a
certain distance or angle

TECHNICAL DATA
Order no. Length l1 Length l2 Transmission Product
type
mm mm
4365010 25 53.7 3 mm 941 W
4365011 50 53.7 3 mm 941 W
4365020 25 49.3 3 mm 941 W
4365021 50 49.3 3 mm 941 W
4365022 75 49.3 3 mm 941 W
4365030 25 34.5 3 mm 941 W
4365031 50 34.5 3 mm 941 W
4365032 75 34.5 3 mm 941 W
Order no. Angle α Length l1 Length l2
° mm mm
4365010 45 25 53.7 8H 7
4365011 45 50 53.7
4365020 60 25 49.3 2 20
4365021 60 50 49.3 l
4365022 60 75 49.3
4365030 90 25 34.5
4365031 90 50 34.5
4365032 90 75 34.5
8h6
1
l
4
13

MarCator | Dial and Digital Indicators 175
