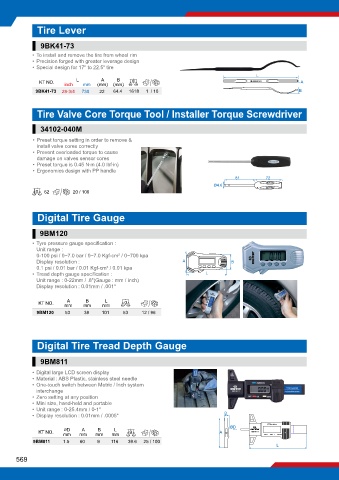

Page 610 - 蓝带金统立KINGTONY2025年样本

Tire Lever

9BK41-73
• To install and remove the tire from wheel rim
• Precision forged with greater leverage design
• Special design for 17" to 22.5" tire
L
B
L
A
KT NO. inch mm (mm) (mm) g 9BK41-73 A
9BK41-73 28-3/4 730 22 64.4 1618 1 / 10 B

Tire Valve Core Torque Tool / Installer Torque Screwdriver

34102-040M

• Preset torque setting in order to remove &
install valve cores correctly
• Prevent overloaded torque to cause
damage on valves sensor cores
• Preset torque is 0.45 N‧m (4.0 lbf‧in)
• Ergonomics design with PP handle
81 72
Ø4.6 0.45 N m
g 62 20 / 100 34102-040M

Digital Tire Gauge

9BM120
• Tyre pressure gauge specification :
Unit range :
0-100 psi / 0~7.0 bar / 0~7.0 Kgf-cm² / 0~700 kpa
Display resolution : A B
0.1 psi / 0.01 bar / 0.01 Kgf-cm² / 0.01 kpa
• Tread depth gauge specification : L
Unit range : 0-22mm / .8"(Gauge : mm / inch)
Display resolution : 0.01mm / .001"

L
A
B
KT NO. mm mm mm g
9BM120 53 38 101 53 12 / 96

Digital Tire Tread Depth Gauge

9BM811

• Digital large LCD screen display
• Material : ABS Plastic, stainless steel needle
• One-touch switch between Metric / Inch system
interchange
• Zero setting at any position
• Mini size, hand-held and portable
• Unit range : 0-25.4mm / 0-1"
• Display resolution : 0.01mm / .0005" B

ØD
A
L
ØD
B
KT NO. mm mm mm mm g A
9BM811 1.5 60 9 116 39.6 25 / 100
L
569
