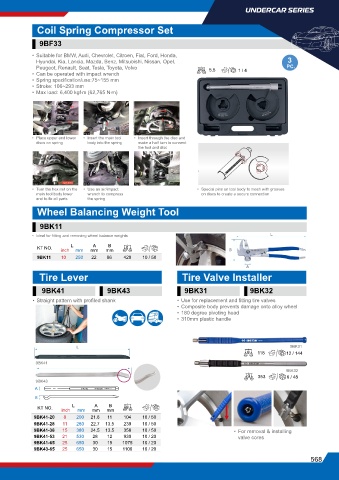

UNDERCAR SERIES

Coil Spring Compressor Set

9BF33

• Suitable for BMW, Audi, Chevrolet, Citroen, Fiat, Ford, Honda,
Hyundai, Kia, Lancia, Mazda, Benz, Mitsubishi, Nissan, Opel, 3
Peugeot, Renault, Seat, Tesla, Toyota, Volvo kg 5.5 1 / 4 PC.
• Can be operated with impact wrench
• Spring specification/use:75~155 mm
• Stroke: 106~293 mm
• Max load: 6,400 kgf‧m (62,765 N‧m)

• Place upper and lower • Insert the main tool • Insert through the disc and
discs on spring body into the spring make a half turn to connect
the tool and disc

• Turn the hex nut on the • Use an air/impact • Special pins on tool body to mesh with grooves
main tool body lower wrench to compress on discs to create a secure connection
end to fix all parts the spring
Wheel Balancing Weight Tool

9BK11

• Ideal for fitting and removing wheel balance weights L
L
B
A
KT NO. inch mm mm mm g B
9BK11 10 250 22 86 420 10 / 50
A
Tire Lever Tire Valve Installer

9BK41 9BK43 9BK31 9BK32

• Straight pattern with profiled shank • Use for replacement and fitting tire valves
• Composite body prevents damage onto alloy wheel
• 180 degree pivoting head
• 310mm plastic handle

L 9BK31
g 118 12 / 144
9BK41
9BK32
g 353 6 / 48
9BK43
A
B
L
A
B
KT NO. inch mm mm mm g
9BK41-20 8 200 21.6 11 104 10 / 50
9BK41-28 11 280 22.7 13.5 239 10 / 50
9BK41-38 15 380 24.5 13.5 358 10 / 50 • For removal & installing
9BK41-53 21 530 28 12 930 10 / 20 valve cores
9BK41-65 25 650 30 15 1075 10 / 20
9BK43-65 25 650 30 15 1100 10 / 20
568
