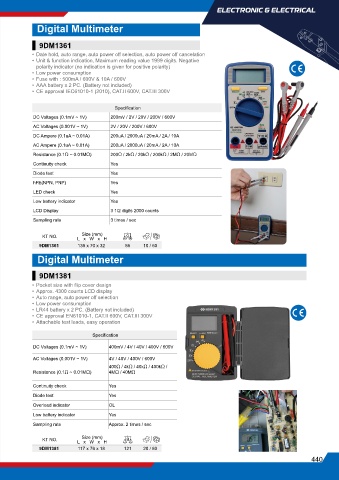

ELECTRONIC & ELECTRICAL

Digital Multimeter

9DM1361
• Date hold, auto range, auto power off selection, auto power off cancelation
• Unit & function indication, Maximum reading value 1999 digits. Negative
polarity indicator (no indication is given for positive polarity)
• Low power consumption
• Fuse with : 500mA / 600V & 10A / 600V
• AAA battery x 2 PC. (Battery not included)
• CE approval IEC61010-1 (2010), CAT.II 600V, CAT.III 300V

Specification
DC Voltages (0.1mV ~ 1V) 200mV / 2V / 20V / 200V / 600V
AC Voltages (0.001V ~ 1V) 2V / 20V / 200V / 600V
DC Ampere (0.1uA ~ 0.01A) 200uA / 2000uA / 20mA / 2A / 10A
AC Ampere (0.1uA ~ 0.01A) 200uA / 2000uA / 20mA / 2A / 10A
Resistance (0.1Ω ~ 0.01MΩ) 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
Continuity check Yes
Diode test Yes
hFE(NPN, PNP) Yes
LED check Yes
Low battery indicator Yes

LCD Display 3 1/2 digits 2000 counts
Sampling rate 3 times / sec

Size (mm)
KT NO. L x W x H g
9DM1361 138 x 70 x 32 85 10 / 60
Digital Multimeter

9DM1381

• Pocket size with flip cover design
• Approx. 4300 counts LCD display
• Auto range, auto power off selection
• Low power consumption
• LR44 battery x 2 PC. (Battery not included)
• CE approval EN61010-1, CAT.II 600V, CAT.III 300V
• Attachable test leads, easy operation

Specification
DC Voltages (0.1mV ~ 1V) 400mV / 4V / 40V / 400V / 600V

AC Voltages (0.001V ~ 1V) 4V / 40V / 400V / 600V
400Ω / 4kΩ / 40kΩ / 400kΩ /
Resistance (0.1Ω ~ 0.01MΩ) 4MΩ / 40MΩ

Continuity check Yes
Diode test Yes
Overload indicator OL
Low battery indicator Yes
Sampling rate Approx. 2 times / sec

Size (mm)
KT NO. L x W x H g
9DM1381 117 x 76 x 18 121 20 / 80
440
