Lit when in DC mode Lit when in mV V Unit for voltage
measurement diode check measurement
Lit when in AC mode
measurement Date hold indication Numeral date display

Negative polarity Lit when the Lit when in transistor
indicator-lit when the battery is low hFE hFE check
polarity is negative

AUTO Auto range indicator M K mA A

Unit for resistance Unit for current measurement
Lit when in measurement
continuity check

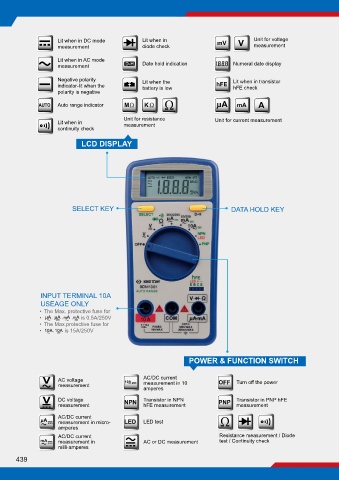

LCD DISPLAY

SELECT KEY DATA HOLD KEY

INPUT TERMINAL 10A
USEAGE ONLY
• The Max. protective fuse for
• is 0.5A/250V
,
,
,
• The Max.protective fuse for
• is 15A/250V
,

POWER & FUNCTION SWITCH

AC voltage AC/DC current OFF Turn off the power
measurement measurement in 10
amperes
DC voltage NPN Transistor in NPN PNP Transistor in PNP hFE
measurement hFE measurement measurement

AC/DC current
measurement in micro- LED LED test
amperes
AC/DC current Resistance measurement / Diode
measurement in AC or DC measurement test / Continuity check
milli-amperes
