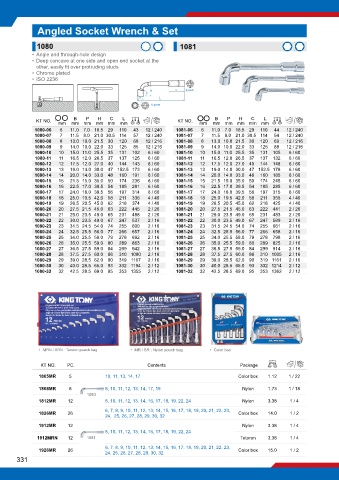

Angled Socket Wrench & Set

1080 1081
• Angle and through-hole design
• Deep concave at one side and open end socket at the
other, easily fit over protruding studs
• Chrome plated
• ISO 2236

H C 6 points
P
B L
12 points
B
P
H
L
C
C
L
B
H
P
KT NO. mm mm mm mm mm mm g KT NO. mm mm mm mm mm mm g
1080-06 6 11.0 7.0 18.5 29 110 43 12 / 240 1081-06 6 11.0 7.0 18.5 29 110 44 12 / 240
1080-07 7 11.5 8.0 21.0 30.5 114 57 12 / 240 1081-07 7 11.5 8.0 21.0 30.5 114 54 12 / 240
1080-08 8 13.0 10.0 21.5 30 120 68 12 / 216 1081-08 8 13.0 10.0 21.5 30 120 69 12 / 216
1080-09 9 14.0 10.0 22.0 33 125 85 12 / 216 1081-09 9 14.0 10.0 22.0 33 125 88 12 / 216
1080-10 10 15.0 11.0 25.5 35 131 102 6 / 60 1081-10 10 15.0 11.0 25.5 35 131 105 6 / 60
1080-11 11 16.5 12.0 26.5 37 137 125 6 / 60 1081-11 11 16.5 12.0 26.5 37 137 132 6 / 60
1080-12 12 17.5 12.0 27.0 40 144 143 6 / 60 1081-12 12 17.5 12.0 27.0 40 144 148 6 / 60
1080-13 13 19.0 14.0 30.0 47 152.5 173 6 / 60 1081-13 13 19.0 14.0 30.0 47 152.5 178 6 / 60
1080-14 14 20.0 14.0 33.0 48 160 191 6 / 60 1081-14 14 20.0 14.0 33.0 48 160 185 6 / 60
1080-15 15 21.5 15.0 35.0 50 174 236 6 / 60 1081-15 15 21.5 15.0 35.0 50 174 245 6 / 60
1080-16 16 22.5 17.0 39.5 54 185 281 6 / 60 1081-16 16 22.5 17.0 39.5 54 185 285 6 / 60
1080-17 17 24.0 18.0 39.5 56 197 314 6 / 60 1081-17 17 24.0 18.0 39.5 56 197 315 6 / 60
1080-18 18 25.0 19.5 42.0 58 211 336 4 / 40 1081-18 18 25.0 19.5 42.0 58 211 355 4 / 40
1080-19 19 26.5 20.5 45.0 62 218 374 4 / 40 1081-19 19 26.5 20.5 45.0 62 218 425 4 / 40
1080-20 20 27.5 21.5 45.0 63 222 445 2 / 20 1081-20 20 27.5 21.5 45.0 63 222 441 2 / 20
1080-21 21 29.0 23.5 49.0 65 231 488 2 / 20 1081-21 21 29.0 23.5 49.0 65 231 483 2 / 20
1080-22 22 30.0 23.5 49.0 67 247 537 2 / 16 1081-22 22 30.0 23.5 49.0 67 247 589 2 / 16
1080-23 23 31.5 24.5 54.0 74 255 600 2 / 16 1081-23 23 31.5 24.5 54.0 74 255 661 2 / 16
1080-24 24 32.5 25.5 56.0 77 266 657 2 / 16 1081-24 24 32.5 25.5 56.0 77 266 658 2 / 16
1080-25 25 34.0 25.5 58.0 79 278 692 2 / 16 1081-25 25 34.0 25.5 58.0 79 278 798 2 / 16
1080-26 26 35.0 25.5 59.0 80 289 863 2 / 16 1081-26 26 35.0 25.5 59.0 80 289 825 2 / 16
1080-27 27 36.5 27.5 59.0 84 299 942 2 / 16 1081-27 27 36.5 27.5 59.0 84 299 914 2 / 16
1080-28 28 37.5 27.5 60.0 86 310 1080 2 / 16 1081-28 28 37.5 27.5 60.0 86 310 1005 2 / 16
1080-29 29 39.0 28.5 62.0 90 319 1167 2 / 16 1081-29 29 39.0 28.5 62.0 90 319 1161 2 / 16
1080-30 30 40.0 28.5 65.0 93 332 1194 2 / 12 1081-30 30 40.0 28.5 65.0 93 332 1214 2 / 12
1080-32 32 42.5 28.5 69.0 95 353 1355 2 / 12 1081-32 32 42.5 28.5 69.0 95 353 1362 2 / 12

• MRN / SRN : Tetoron pouch bag • MR / SR : Nylon pouch bag • Color box

KT NO. PC. Contents Package Kg

1805MR 5 10, 11, 13, 14, 17 Color box 1.12 1 / 22
1808MR 8 8, 10, 11, 12, 13, 14, 17, 19 Nylon 1.73 1 / 18
1080
1812MR 12 8, 10, 11, 12, 13, 14, 16, 17, 18, 19, 22, 24 Nylon 3.38 1 / 4
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23,
1826MR 26 Color box 14.0 1 / 2
24, 25, 26, 27, 28, 29, 30, 32
1912MR 12 Nylon 3.38 1 / 4
8, 10, 11, 12, 13, 14, 16, 17, 18, 19, 22, 24
1912MRN 12 1081 Tetoron 3.38 1 / 4
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23,
1926MR 26 Color box 15.0 1 / 2
24, 25, 26, 27, 28, 29, 30, 32
331
