TORQUE CONTROL &
MULTIPLIERS

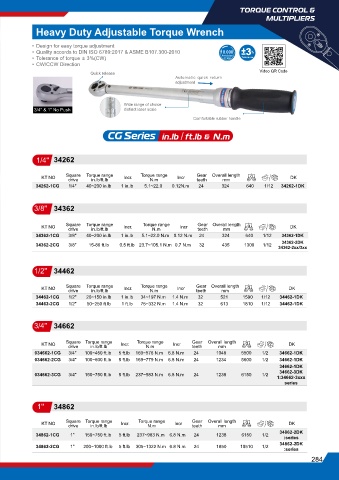

Heavy Duty Adjustable Torque Wrench

• Design for easy torque adjustment
• Quality accords to DIN ISO 6789:2017 & ASME B107.300-2010 10,000 3
• Tolerance of torque ± 3%(CW)
• CW/CCW Direction
Video QR Code
Quick release
Automatic quick return
adjustment

Wide range of choice
3/4" & 1" No Push distinct laser scale
Comfortable rubber handle

CG Series &

1/4'' 34262

KT NO Square Torque range Incr. Torque range lncr Gear Overall length g DK
in.lb/ft.lb
drive
teeth
N.m
mm
34262-1CG 1/4" 40~200 in.lb 1 in.lb 5.1~22.0 0.12N.m 24 324 640 1/12 34262-1DK
3/8'' 34362

KT NO Square Torque range Incr. Torque range lncr Gear Overall length g DK
teeth
N.m
in.lb/ft.lb
mm
drive
34362-1CG 3/8" 40~200 in.lb 1 in.lb 5.1~22.0 N.m 0.12 N.m 24 324 640 1/12 34362-1DK
34362-2DK
34362-2CG 3/8" 15-80 ft.lb 0.5 ft.lb 23.7~105.1 N.m 0.7 N.m 32 435 1300 1/12
34362-2xx/3xx
1/2'' 34462

KT NO Square Torque range Incr. Torque range lncr Gear Overall length g DK
N.m
drive
teeth
mm
in.lb/ft.lb
34462-1CG 1/2" 20~150 in.lb 1 in.lb 34~197 N.m 1.4 N.m 32 521 1590 1/12 34462-1DK
34462-2CG 1/2" 50~250 ft.lb 1 ft.lb 75~332 N.m 1.4 N.m 32 613 1810 1/12 34462-1DK
3/4'' 34662

KT NO Square Torque range Incr. Torque range lncr Gear Overall length g DK
N.m
mm
in.lb/ft.lb
teeth
drive
034662-1CG 3/4" 100~450 ft.lb 5 ft.lb 169~576 N.m 6.8 N.m 24 1048 5500 1/2 34662-1DK
034662-2CG 3/4" 100~600 ft.lb 5 ft.lb 169~779 N.m 6.8 N.m 24 1234 5600 1/2 34662-1DK
34662-1DK
34662-3DK
034662-3CG 3/4" 150~750 ft.lb 5 ft.lb 237~983 N.m 6.8 N.m 24 1238 6150 1/2
1:34662-3xxx
series
1'' 34862

KT NO Square Torque range Incr. Torque range lncr Gear Overall length g DK
in.lb/ft.lb
N.m
teeth
mm
drive
34862-2DK
34862-1CG 1" 150~750 ft.lb 5 ft.lb 237~983 N.m 6.8 N.m 24 1238 6150 1/2
:series
34862-2DK
34862-2CG 1" 200~1000 ft.lb 5 ft.lb 305~1322 N.m 6.8 N.m 24 1850 10510 1/2
:series
