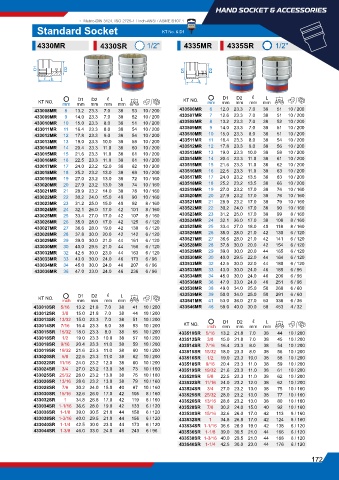

Page 213 - 蓝带金统立KINGTONY2025年样本

HAND SOCKET & ACCESSORIES
T & A
HAND SOCKE
SORIES
CES
C
• Metric-DIN 3124, ISO 2725-1 / Inch-ANSI / ASME B107.1
Standard Socket KT No. & D1
4330MR 4330SR 1/2" 4335MR 4335SR 1/2"

D1 D2 D1 D2

l L l L

ℓ
L
D1
D2
ℓ
L
D2
D1
KT NO. mm mm mm mm mm g KT NO. mm mm mm mm mm g
433008MR 8 13.2 23.3 7.0 38 53 10 / 200 433506MR 6 12.0 23.3 7.0 38 51 10 / 200
433009MR 9 14.0 23.3 7.0 38 52 10 / 200 433507MR 7 12.6 23.3 7.0 38 51 10 / 200
433010MR 10 15.0 23.3 8.0 38 51 10 / 200 433508MR 8 13.2 23.3 7.0 38 52 10 / 200
433011MR 11 16.4 23.3 8.0 38 54 10 / 200 433509MR 9 14.0 23.3 7.0 38 51 10 / 200
433012MR 12 17.8 23.3 9.0 38 54 10 / 200 433510MR 10 15.0 23.3 8.0 38 51 10 / 200
433013MR 13 19.0 23.3 10.0 38 58 10 / 200 433511MR 11 16.4 23.3 8.0 38 54 10 / 200
433014MR 14 20.4 23.3 11.0 38 60 10 / 200 433512MR 12 17.8 23.3 9.0 38 56 10 / 200
433015MR 15 21.6 23.3 11.0 38 61 10 / 200 433513MR 13 19.0 23.3 10.0 38 58 10 / 200
433016MR 16 22.5 23.3 11.0 38 61 10 / 200 433514MR 14 20.4 23.3 11.0 38 61 10 / 200
433017MR 17 24.0 23.2 12.0 38 62 10 / 200 433515MR 15 21.6 23.3 11.0 38 62 10 / 200
433018MR 18 25.2 23.2 13.0 38 69 10 / 200 433516MR 16 22.5 23.3 11.0 38 63 10 / 200
433019MR 19 27.0 23.2 13.0 38 72 10 / 160 433517MR 17 24.0 23.2 13.5 38 63 10 / 200
433020MR 20 27.9 23.2 13.0 38 74 10 / 160 433518MR 18 25.2 23.2 13.5 38 66 10 / 200
433021MR 21 28.9 23.2 14.0 38 78 10 / 160 433519MR 19 27.0 23.2 17.0 38 74 10 / 160
433022MR 22 30.2 24.0 15.0 40 90 10 / 160 433520MR 20 27.9 23.2 17.0 38 76 10 / 160
433023MR 23 31.2 25.0 15.0 40 92 8 / 160 433521MR 21 28.9 23.2 17.0 38 79 10 / 160
433024MR 24 32.1 26.0 17.0 42 101 8 / 160 433522MR 22 30.2 24.0 17.0 38 90 10 / 160
433025MR 25 33.4 27.0 17.0 42 107 8 / 160 433523MR 23 31.2 25.0 17.0 38 99 8 / 160
433026MR 26 35.0 28.0 17.0 42 125 6 / 120 433524MR 24 32.1 26.0 17.0 38 108 8 / 160
433027MR 27 36.6 28.0 19.0 42 130 6 / 120 433525MR 25 33.4 27.0 18.0 40 118 8 / 160
433028MR 28 37.8 30.0 20.0 42 142 6 / 120 433526MR 26 35.0 28.0 21.0 42 130 6 / 120
433029MR 29 39.0 30.0 21.0 44 161 6 / 120 433527MR 27 36.6 28.0 21.0 42 141 6 / 120
433030MR 30 40.0 29.5 21.0 44 156 6 / 120 433528MR 28 37.8 30.0 20.0 42 154 6 / 120
433032MR 32 42.5 30.0 23.0 44 163 6 / 120 433529MR 29 39.0 30.0 20.0 44 165 6 / 120
433033MR 33 43.0 30.0 24.0 46 173 6 / 96 433530MR 30 40.0 29.5 22.0 44 164 6 / 120
433034MR 34 45.0 30.0 24.0 46 207 6 / 96 433532MR 32 42.5 30.0 22.0 44 180 6 / 120
433036MR 36 47.0 33.0 24.0 46 236 6 / 96 433533MR 33 43.0 30.0 24.0 46 185 6 / 96
433534MR 34 45.0 30.0 24.0 46 206 6 / 96
433536MR 36 47.0 33.0 24.0 46 251 6 / 96
433538MR 38 49.0 34.0 25.0 50 268 6 / 60
D2
L
D1
ℓ
KT NO. inch mm mm mm mm g 433539MR 39 50.0 34.0 25.0 50 291 6 / 60
433541MR
53.0
41
6 / 36
36.0
336
53
27.0
433010SR 5/16 13.2 21.8 7.0 38 41 10 / 200 433546MR 46 59.0 40.0 30.0 58 453 4 / 32
433012SR 3/8 15.0 21.8 7.0 38 44 10 / 200
433013SR 13/32 15.0 23.3 7.0 38 51 10 / 200 D1 D2 ℓ L
433014SR 7/16 16.4 23.3 8.0 38 53 10 / 200 KT NO. inch mm mm mm mm g
433015SR 15/32 18.0 23.3 8.0 38 55 10 / 200 433510SR 5/16 13.2 21.8 7.0 38 44 10 / 200
433016SR 1/2 19.0 23.3 10.0 38 57 10 / 200 433512SR 3/8 15.0 21.8 7.0 38 45 10 / 200
433018SR 9/16 20.4 23.3 11.0 38 59 10 / 200 433514SR 7/16 16.4 23.3 8.0 38 54 10 / 200
433019SR 19/32 21.6 23.3 11.0 38 60 10 / 200 433515SR 15/32 18.0 23.3 8.0 38 56 10 / 200
433020SR 5/8 22.5 23.3 11.0 38 62 10 / 200 433516SR 1/2 19.0 23.3 10.0 38 58 10 / 200
433022SR 11/16 24.0 23.2 12.0 38 60 10 / 200 433518SR 9/16 20.4 23.3 11.0 38 59 10 / 200
433024SR 3/4 27.0 23.2 13.0 38 73 10 / 160 433519SR 19/32 21.6 23.3 11.0 38 61 10 / 200
433025SR 25/32 28.0 23.2 13.0 38 75 10 / 160 433520SR 5/8 22.5 23.3 11.0 38 62 10 / 200
433026SR 13/16 28.6 23.2 13.0 38 79 10 / 160 433522SR 11/16 24.0 23.2 12.0 38 62 10 / 200
433028SR 7/8 30.2 24.0 15.0 40 87 10 / 160 433524SR 3/4 27.0 23.2 13.0 38 75 10 / 160
433030SR 15/16 32.6 26.0 17.0 42 105 8 / 160 433525SR 25/32 28.0 23.2 13.0 38 77 10 / 160
433032SR 1 34.8 26.8 17.0 42 119 8 / 160 433526SR 13/16 28.6 23.2 13.0 38 80 10 / 160
433034SR 1-1/16 36.6 28.0 19.0 42 133 6 / 120 433528SR 7/8 30.2 24.0 15.0 40 92 10 / 160
433036SR 1-1/8 39.0 30.5 21.0 44 158 6 / 120 433530SR 15/16 32.6 26.0 17.0 42 113 8 / 160
433038SR 1-3/16 40.0 29.5 21.0 44 156 6 / 120 433532SR 1 34.8 26.8 17.0 42 124 8 / 160
433040SR 1-1/4 42.5 30.0 23.0 44 173 6 / 120 433534SR 1-1/16 36.6 28.0 19.0 42 138 6 / 120
433044SR 1-3/8 46.0 33.0 24.0 46 243 6 / 96 433536SR 1-1/8 39.0 30.5 21.0 44 166 6 / 120
433538SR 1-3/16 40.0 29.5 21.0 44 168 6 / 120
433540SR 1-1/4 42.5 30.0 23.0 44 176 6 / 120
