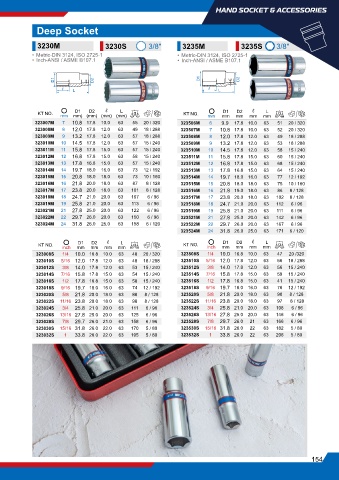

HAND SOCKET & ACCESSORIES

Deep Socket

3230M 3230S 3/8" 3235M 3235S 3/8"
• Metric-DIN 3124, ISO 2725-1 • Metric-DIN 3124, ISO 2725-1
• Inch-ANSI / ASME B107.1 • Inch-ANSI / ASME B107.1

D1 D2 D1 D2
l L l L

D1
D2
L
L
ℓ
D2
D1
ℓ
KT NO. mm mm) (mm) (mm) (mm) g KT NO. mm mm mm mm mm g
323007M 7 10.8 17.8 10.0 63 55 20 / 320 323506M 6 9.9 17.8 10.0 63 51 20 / 320
323008M 8 12.0 17.8 12.0 63 49 18 / 288 323507M 7 10.8 17.8 10.0 63 52 20 / 320
323009M 9 13.2 17.8 12.0 63 57 18 / 288 323508M 8 12.0 17.8 12.0 63 49 18 / 288
323010M 10 14.5 17.8 12.0 63 57 15 / 240 323509M 9 13.2 17.8 12.0 63 53 18 / 288
323011M 11 15.8 17.8 15.0 63 57 15 / 240 323510M 10 14.5 17.8 12.0 63 58 15 / 240
323012M 12 16.8 17.8 15.0 63 58 15 / 240 323511M 11 15.8 17.8 15.0 63 60 15 / 240
323013M 13 17.8 16.8 15.0 63 57 15 / 240 323512M 12 16.8 17.8 15.0 63 68 15 / 240
323014M 14 19.7 18.0 16.0 63 73 12 / 192 323513M 13 17.8 16.8 15.0 63 64 15 / 240
323015M 15 20.8 18.0 18.0 63 73 10 / 160 323514M 14 19.7 18.0 16.0 63 77 12 / 192
323016M 16 21.8 20.0 18.0 63 87 8 / 128 323515M 15 20.8 18.0 18.0 63 75 10 / 160
323017M 17 23.8 20.0 18.0 63 101 8 / 128 323516M 16 21.8 19.0 18.0 63 86 8 / 128
323018M 18 24.7 21.0 20.0 63 107 6 / 96 323517M 17 23.8 20.0 18.0 63 102 8 / 128
323019M 19 25.8 21.0 20.0 63 113 6 / 96 323518M 18 24.7 21.0 20.0 63 112 6 / 96
323021M 21 27.8 25.0 20.0 63 122 6 / 96 323519M 19 25.8 21.0 20.0 63 111 6 / 96
323022M 22 29.7 26.0 20.0 63 150 6 / 96 323521M 21 27.8 25.0 20.0 63 142 6 / 96
323024M 24 31.8 26.0 25.0 63 158 6 / 120 323522M 22 29.7 26.0 20.0 63 167 6 / 96
323524M 24 31.8 26.0 25.0 63 171 6 / 120
D2
D1
L
L
D2
ℓ
ℓ
D1
KT NO. inch mm mm mm mm g KT NO. inch mm mm mm mm g
323008S 1/4 10.0 16.8 10.0 63 48 20 / 320 323508S 1/4 10.0 16.8 10.0 63 47 20 /320
323010S 5/16 12.0 17.8 12.0 63 48 18 / 288 323510S 5/16 12.0 17.8 12.0 63 56 18 / 288
323012S 3/8 14.0 17.8 12.0 63 53 15 / 240 323512S 3/8 14.0 17.8 12.0 63 56 15 / 240
323014S 7/16 15.8 17.8 15.0 63 54 15 / 240 323514S 7/16 15.8 17.8 15.0 63 59 15 / 240
323016S 1/2 17.8 16.8 15.0 63 58 15 / 240 323516S 1/2 17.8 16.8 15.0 63 41 15 / 240
323018S 9/16 19.7 18.0 16.0 63 74 12 / 192 323518S 9/16 19.7 18.0 16.0 63 76 12 / 192
323020S 5/8 21.8 20.0 18.0 63 88 8 / 128 323520S 5/8 21.8 20.0 18.0 63 90 8 / 128
323022S 11/16 23.8 20.0 18.0 63 98 8 / 128 323522S 11/16 23.8 20.0 18.0 63 97 8 / 128
323024S 3/4 25.8 21.0 20.0 63 111 6 / 96 323524S 3/4 25.8 21.0 20.0 63 108 6 / 96
323026S 13/16 27.8 25.0 20.0 63 125 6 / 96 323526S 13/16 27.8 25.0 20.0 63 146 6 / 96
323028S 7/8 29.7 26.0 21.0 63 158 6 / 96 323528S 7/8 29.7 26.0 21 63 166 6 / 96
323030S 15/16 31.8 26.0 22.0 63 170 5 / 80 323530S 15/16 31.8 26.0 22 63 182 5 / 80
323032S 1 33.8 26.0 22.0 63 195 5 / 80 323532S 1 33.8 26.0 22 63 206 5 / 80
