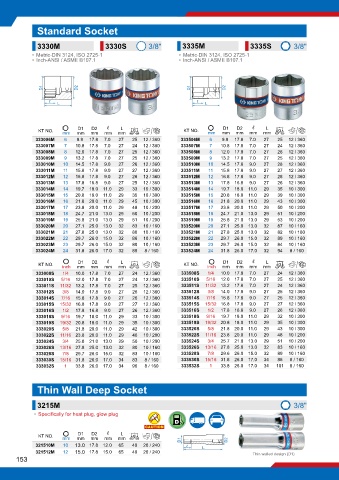

Page 194 - 蓝带金统立KINGTONY2025年样本

Standard Socket

3330M 3330S 3/8" 3335M 3335S 3/8"
• Metric-DIN 3124, ISO 2725-1 • Metric-DIN 3124, ISO 2725-1
• Inch-ANSI / ASME B107.1 • Inch-ANSI / ASME B107.1

D1 D2 D1 D2

l l
L L

D1
D2
L
ℓ
L
D2
ℓ
D1
KT NO. mm mm mm mm mm g KT NO. mm mm mm mm mm g
333006M 6 9.9 17.8 7.0 27 25 12 / 360 333506M 6 9.9 17.8 7.0 27 25 12 / 360
333007M 7 10.8 17.8 7.0 27 24 12 / 360 333507M 7 10.8 17.8 7.0 27 24 12 / 360
333008M 8 12.0 17.8 7.0 27 25 12 / 360 333508M 8 12.0 17.8 7.0 27 26 12 / 360
333009M 9 13.2 17.8 7.0 27 25 12 / 360 333509M 9 13.2 17.8 7.0 27 25 12 / 360
333010M 10 14.5 17.8 9.0 27 26 12 / 360 333510M 10 14.5 17.8 9.0 27 28 12 / 360
333011M 11 15.8 17.8 9.0 27 27 12 / 360 333511M 11 15.8 17.8 9.0 27 27 12 / 360
333012M 12 16.8 17.8 9.0 27 26 12 / 360 333512M 12 16.8 17.8 9.0 27 28 12 / 360
333013M 13 17.8 16.8 9.0 27 25 12 / 360 333513M 13 17.8 16.8 9.0 27 26 12 / 360
333014M 14 19.7 18.0 11.0 29 33 10 / 300 333514M 14 19.7 18.0 11.0 29 35 10 / 300
333015M 15 20.8 18.0 11.0 29 35 10 / 300 333515M 15 20.8 18.0 11.0 29 39 10 / 300
333016M 16 21.8 20.0 11.0 29 45 10 / 300 333516M 16 21.8 20.0 11.0 29 43 10 / 300
333017M 17 23.8 20.0 11.0 29 48 10 / 200 333517M 17 23.8 20.0 11.0 29 50 10 / 200
333018M 18 24.7 21.0 13.0 29 50 10 / 200 333518M 18 24.7 21.0 13.0 29 51 10 / 200
333019M 19 25.8 21.0 13.0 29 51 10 / 200 333519M 19 25.8 21.0 13.0 29 53 10 / 200
333020M 20 27.1 25.0 13.0 32 83 10 / 160 333520M 20 27.1 25.0 13.0 32 87 10 / 160
333021M 21 27.8 25.0 13.0 32 80 10 / 160 333521M 21 27.8 25.0 13.0 32 82 10 / 160
333022M 22 29.7 26.0 15.0 32 86 10 / 160 333522M 22 29.7 26.0 15.0 32 89 10 / 160
333023M 23 29.7 26.0 15.0 32 80 10 / 160 333523M 23 29.7 26.0 15.0 32 84 10 / 160
333024M 24 31.8 26.0 17.0 32 89 8 / 160 333524M 24 31.8 26.0 17.0 32 94 8 / 160

D1
L
L
D2
ℓ
ℓ
D1
D2
KT NO. inch mm mm mm mm g KT NO. inch mm mm mm mm g
333008S 1/4 10.0 17.8 7.0 27 24 12 / 360 333508S 1/4 10.0 17.8 7.0 27 24 12 / 360
333010S 5/16 12.0 17.8 7.0 27 24 12 / 360 333510S 5/16 12.0 17.8 7.0 27 25 12 / 360
333011S 11/32 13.2 17.8 7.0 27 25 12 / 360 333511S 11/32 13.2 17.8 7.0 27 24 12 / 360
333012S 3/8 14.0 17.8 9.0 27 26 12 / 360 333512S 3/8 14.0 17.8 9.0 27 25 12 / 360
333014S 7/16 15.8 17.8 9.0 27 26 12 / 360 333514S 7/16 15.8 17.8 9.0 27 25 12 / 360
333015S 15/32 16.8 17.8 9.0 27 27 12 / 360 333515S 15/32 16.8 17.8 9.0 27 27 12 / 360
333016S 1/2 17.8 16.8 9.0 27 26 12 / 360 333516S 1/2 17.8 16.8 9.0 27 26 12 / 360
333018S 9/16 19.7 18.0 11.0 29 33 10 / 300 333518S 9/16 19.7 18.0 11.0 29 32 10 / 300
333019S 19/32 20.8 18.0 11.0 29 35 10 / 300 333519S 19/32 20.8 18.0 11.0 29 35 10 / 300
333020S 5/8 21.8 20.0 11.0 29 42 10 / 300 333520S 5/8 21.8 20.0 11.0 29 43 10 / 300
333022S 11/16 23.8 20.0 11.0 29 46 10 / 200 333522S 11/16 23.8 20.0 11.0 29 48 10 / 200
333024S 3/4 25.8 21.0 13.0 29 50 10 / 200 333524S 3/4 25.7 21.0 13.0 29 51 10 / 200
333026S 13/16 27.8 25.0 13.0 32 80 10 / 160 333526S 13/16 27.8 25.0 13.0 32 83 10 / 160
333028S 7/8 29.7 26.0 15.0 32 83 10 / 160 333528S 7/8 29.6 26.0 15.0 32 89 10 / 160
333030S 15/16 31.8 26.0 17.0 34 83 8 / 160 333530S 15/16 31.8 26.0 17.0 34 86 8 / 160
333032S 1 33.8 26.0 17.0 34 96 8 / 160 333532S 1 33.8 26.0 17.0 34 101 8 / 160

Thin Wall Deep Socket

3215M 3/8"
• Specifically for heat plug, glow plug
D
ℓ
D2
L
D1
KT NO. mm mm mm mm mm g
321510M 10 13.0 17.8 12.0 65 49 20 / 240 D1 l L D2
321512M 12 15.0 17.8 15.0 65 49 20 / 240 Thin walled design (D1)
153
