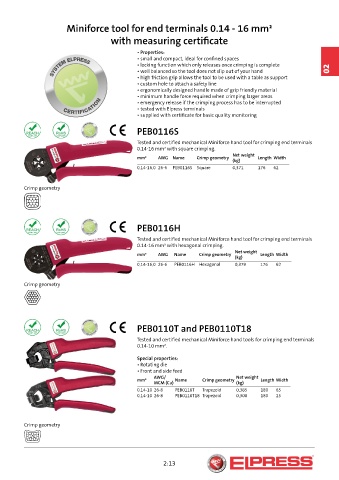

Miniforce tool for end terminals 0.14 - 16 mm²

with measuring certificate

• Properties:
• small and compact, ideal for confined spaces
• locking function which only releases once crimping is complete
• well balanced so the tool does not slip out of your hand 02
• high friction grip allows the tool to be used with a table as support
• custom hole to attach a safety line
• ergonomically designed handle made of grip friendly material
• minimum handle force required when crimping larger areas
• emergency release if the crimping process has to be interrupted
• tested with Elpress terminals
• supplied with certificate for basic quality monitoring

PEB0116S

Tested and certified mechanical Miniforce hand tool for crimping end terminals
0.14-16 mm² with square crimping.
Net weight
mm² AWG Name Crimp geometry Length Width
(kg)
0,14-16,0 26-6 PEB0116S Square 0,371 176 62

Crimp geometry

PEB0116H

Tested and certified mechanical Miniforce hand tool for crimping end terminals
0.14-16 mm² with hexagonal crimping.
Net weight
mm² AWG Name Crimp geometry Length Width
(kg)
0,14-16,0 26-6 PEB0116H Hexagonal 0,379 176 62

Crimp geometry

PEB0110T and PEB0110T18

Tested and certified mechanical Miniforce hand tools for crimping end terminals
0.14-10 mm².

Special properties:
• Rotating die
• Front and side feed
AWG/ Net weight
mm² Name Crimp geometry Length Width
MCM (Cu) (kg)
0,14-10 26-8 PEB0110T Trapezoid 0,385 180 65
0,14-10 26-8 PEB0110T18 Trapezoid 0,300 180 25
