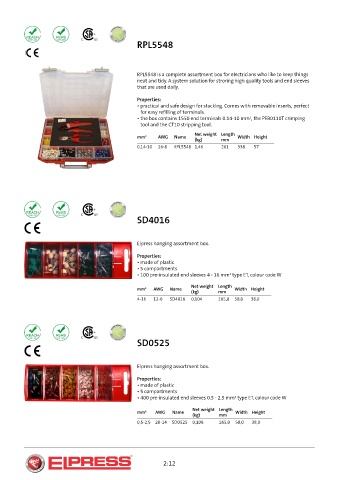

RPL5548

RPL5548 is a complete assortment box for electricians who like to keep things
neat and tidy. A system solution for stroring high quality tools and end sleeves
that are used daily.

Properties:
• practical and safe design for stacking. Comes with removable inserts, perfect
for easy refilling of terminals.
• the box contains 1550 end terminals 0.14-10 mm², the PEB0110T crimping
tool and the CT10 stripping tool.
Net weight Length
mm² AWG Name Width Height
(kg) mm
0,14-10 26-8 RPL5548 1,46 261 338 57

SD4016

Elpress hanging assortment box.

Properties:
• made of plastic
• 5 compartments
• 100 pre-insulated end sleeves 4 - 16 mm² type ET, colour code W
Net weight Length
mm² AWG Name Width Height
(kg) mm
4-16 12-6 SD4016 0,104 165,0 58,0 38,0

SD0525

Elpress hanging assortment box.
Properties:
• made of plastic
• 5 compartments
• 400 pre-insulated end sleeves 0.5 - 2.5 mm² type ET, colour code W
Net weight Length
mm² AWG Name Width Height
(kg) mm
0,5-2,5 20-14 SD0525 0,106 165,0 58,0 38,0

2:12
