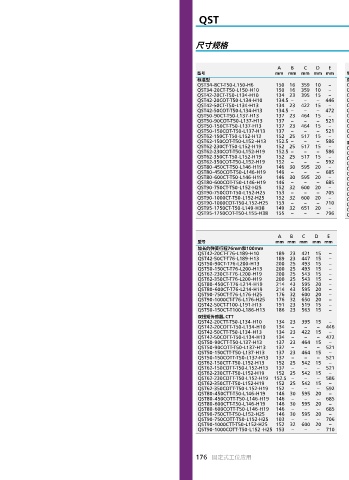

Page 352 - 2023 阿特拉斯 装配大样本
P. 352
QST 附件
尺寸规格
A B C D E A B C D E
型号 mm mm mm mm mm 型号 mm mm mm mm mm
标准型 双扭矩传感器和双角度传感器，CATT
QST34-8CT-T50-L150-H6 150 16 359 10 – QST42-20CATT-T50-L134-H10 134 23 395 15 –
QST34-20CT-T50-L150-H10 150 16 359 10 – QST42-50CATT-T50-L134-H13 134 23 422 15 –
QST42-20CT-T50-L134-H10 134 23 395 15 – QST50-90CATT-T50-L137-H13 137 23 464 15 –
QST42-20COT-T50-L134-H10 134.5 – – – 446 QST50-150CATT-T50-L137-H13 137 23 464 15 –
QST42-50CT-T50-L134-H13 134 23 422 15 – QST62-150CATT -T50-L152-H13 152 25 542 15 –
QST42-50COT-T50-L134-H13 134.5 – – – 472 QST62-230CATT-T50-L152-H19 152 25 542 15 –
QST50-90CT-T50-L137-H13 137 23 464 15 – QST62-350CATT-T50-L152-H19 152 25 542 15 –
QST50-90COT-T50-L137-H13 137 – – – 521 QST80-450CATT-T50-L146-H19 146 30 595 20 –
QST50-150CT-T50-L137-H13 137 23 464 15 – QST80-600CATT-T50-L146-H19 146 30 595 20 –
QST50-150COT-T50-L137-H13 137 – – – 521 QST90-750CATT-T50-L152-H25 152 32 600 20 –
QST62-150CT-T50-L152-H13 152 25 517 15 – QST90-1000CATT-T50-L152-H25 152 32 600 20 –
QST62-150COT-T50-L152 -H13 152.5 – – – 586 弯头式
QST62-230CT-T50-L152-H19 152 25 517 15 – QST42-20CTV-P10 65 – – 8 409
QST62-230COT-T50-L152-H19 152.5 – – – 586 QST42-20CTV-T25-H10 – – – – –
QST62-350CT-T50-L152-H19 152 25 517 15 – QST42-30CTV-P10 83 – – 8 435
QST62-350COT-T50-L152-H19 152 – – – 592 QST42-30CTV-T25-H10 – – – – 525
QST80-450CT-T50-L146-H19 146 30 595 20 – QST42-70CTV-P13 84 – – 15 432
QST80-450COT-T50-L146-H19 146 – – – 685 QST42-70CTV-T25-H13 – – – – 526
QST80-600CT-T50-L146-H19 146 30 595 20 – QST50-170CTV-P13 135 – – 15 481
QST80-600COT-T50-L146-H19 146 – – – 685 QST50-170CTV-T50-H13 – – – – –
QST90-750CT-T50-L152-H25 152 32 600 20 – QST50-200CTV-H19 135 – – 15 481
QST90-750COT-T50-L152-H25 153 – – – 705 QST50-200CTV-T25-H19 135 – – 15 481
QST90-1000CT-T50-L152-H25 152 32 600 20 – QST50-200CTV-T50-H19 135 – – 15 481
QST90-1000COT-T50-L152-H25 153 – – – 710 QST62-350CTV-H19 153 – – 14 564
QST95-1750CT-T50-L149-H38 149 32 651 20 – QST62-350CTV-T25-H19 153 – – 14 564
QST95-1750COT-T50-L155-H38 155 – – – 796 QST62-600CTV-H25 174 – – 14 564
A B C D E
型号 mm mm mm mm mm
加长的弹簧行程76mm和100mm
QST42-20CT-T76-L189-H10 189 23 421 15 – A B C
QST42-50CT-T76-L189-H13 189 23 447 15 – D
QST50-90CT-T76-L200-H13 200 25 493 15 –
QST50-150CT-T76-L200-H13 200 25 493 15 –
QST62-230CT-T76-L200-H19 200 25 543 15 –
QST62-350CT-T76-L200-H19 200 25 543 15 –
QST80-450CT-T76-L214-H19 214 43 595 20 –
QST80-600CT-T76-L214-H19 214 43 595 20 – CT – 直柄式
QST90-750CT-T76-L176-H25 176 32 600 20 –
QST90-1000CT-T76-L176-H25 176 32 650 20 – A E
QST42-50CT-T100-L191-H13 191 23 519 15 –
QST50-150CT-T100-L186-H13 186 23 563 15 –
双扭矩传感器，CTT
QST42-20CTT-T50-L134-H10 134 23 395 15 –
QST42-20COTT-T50-L134-H10 134 – – – 446
QST42-50CTT-T50-L134-H13 134 23 422 15 –
QST42-50COTT-T50-L134-H13 134 – – – 472
QST50-90CTT-T50-L137-H13 137 23 464 15 – COT – 偏置式
QST50-90COTT-T50-L137-H13 137 – – – 521
QST50-150CTT-T50-L137-H13 137 23 464 15 –
QST50-150COTT-T50-L137-H13 137 – – – 521
QST62-150CTT-T50-L152-H13 152 25 542 15 – A E
QST62-150COTT-T50-L152-H13 137 – – – 521 D
QST62-230CTT-T50-L152-H19 152 25 542 15 –
QST62-230COTT-T50-L152-H19 152.5 – – – 586
QST62-350CTT-T50-L152-H19 152 25 542 15 –
QST62-350COTT-T50-L152-H19 152 – – – 592
QST80-450CTT-T50-L146-H19 146 30 595 20 –
QST80-450COTT-T50-L146-H19 146 – – – 685
QST80-600CTT-T50-L146-H19 146 30 595 20 – CTV – 弯头式
QST80-600COTT-T50-L146-H19 146 – – – 685
QST90-750CTT-T50-L152-H25 146 30 595 20 –
QST90-750COTT-T50-L152-H25 103 – – – 706
QST90-1000CTT-T50-L152-H25 152 32 600 20 –
QST90-1000COTT-T50-L152 -H25 153 – – – 710
