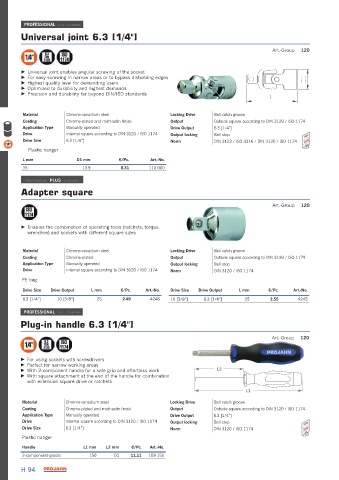

Page 96 - 德国Projahn2022

PROFESSIONAL PLUS STANDARD
Universal joint 6.3 [1/4"]

Art.-Group 120

▶ Universal joint enables angular screwing of the socket
▶ For easy screwing in narrow areas or to bypass disturbing edges
▶ Highest quality level for demanding users
▶ Optimized to durability and highest demands
▶ Precision and durability far beyond DIN/ISO standards

Material Chrome-vanadium steel Locking Drive Ball catch groove
Coating Chrome-plated and matt-satin finish Output Outside square according to DIN 3120 / ISO 1174
Application Type Manually operated Drive Output 6.3 [1/4"]
Drive Internal square according to DIN 3120 / ISO 1174 Output locking Ball stop
Drive Size 6.3 [1/4"] Norm DIN 3123 / ISO 3316 / DIN 3120 / ISO 1174
Plastic hanger

L mm D1 mm €/Pc. Art.-No.
35 13.9 8.31 110 000

PLUS
PROFESSIONAL
STANDARD

PROFESSIONAL PLUS STANDARD

Adapter square
Art.-Group 120

▶ Enables the combination of operating tools (ratchets, torque
wrenches) and sockets with different square sizes

Material Chrome-vanadium steel Locking Drive Ball catch groove
Coating Chrome-plated Output Outside square according to DIN 3120 / ISO 1174
Application Type Manually operated Output locking Ball stop
Drive Internal square according to DIN 3120 / ISO 1174 Norm DIN 3120 / ISO 1174
PE bag
Drive Size Drive Output L mm €/Pc. Art.-No. Drive Size Drive Output L mm €/Pc. Art.-No.
6.3 [1/4“] 10 [3/8“] 25 2.49 4248 10 [3/8“] 6.3 [1/4“] 25 3.55 4245

PROFESSIONAL PLUS STANDARD
Plug-in handle 6.3 [1/4"]

Art.-Group 120

▶ For using sockets with screwdrivers
▶ Perfect for narrow working areas
▶ With 2-component handle for a safe grip and effortless work L2
▶ With square attachment at the end of the handle for combination
with extension square drive or ratchets
L1

Material Chrome-vanadium steel Locking Drive Ball catch groove
Coating Chrome-plated and matt-satin finish Output Outside square according to DIN 3120 / ISO 1174
Application Type Manually operated Drive Output 6.3 [1/4"]
Drive Internal square according to DIN 3120 / ISO 1174 Output locking Ball stop
Drive Size 6.3 [1/4"] Norm DIN 3120 / ISO 1174
Plastic hanger
Handle L1 mm L2 mm €/Pc. Art.-No.
2-components-plastic 150 50 11.11 109 151

H 94
