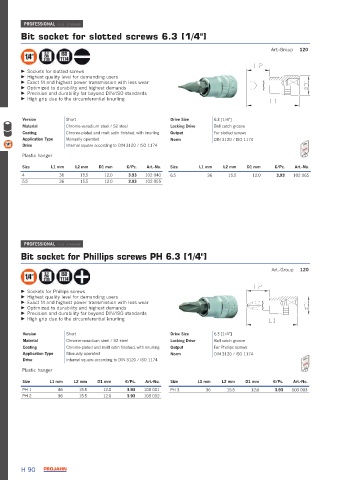

PROFESSIONAL PLUS STANDARD
Bit socket for slotted screws 6.3 [1/4"]

Art.-Group 120

▶ Sockets for slotted screws
▶ Highest quality level for demanding users
▶ Exact fit and highest power transmission with less wear
▶ Optimized to durability and highest demands
▶ Precision and durability far beyond DIN/ISO standards
▶ High grip due to the circumferential knurling

Version Short Drive Size 6.3 [1/4"]
Material Chrome-vanadium steel / S2 steel Locking Drive Ball catch groove
Coating Chrome-plated and matt satin finished, with knurling Output For slotted screws
Application Type Manually operated Norm DIN 3120 / ISO 1174
Drive Internal square according to DIN 3120 / ISO 1174
Plastic hanger

Size L1 mm L2 mm D1 mm €/Pc. Art.-No. Size L1 mm L2 mm D1 mm €/Pc. Art.-No.
4 36 15.5 12.0 3.93 102 040 6.5 36 15.5 12.0 3.93 102 065
5.5 36 15.5 12.0 3.93 102 055

PROFESSIONAL PLUS STANDARD
Bit socket for Phillips screws PH 6.3 [1/4"]

Art.-Group 120

▶ Sockets for Phillips screws
▶ Highest quality level for demanding users
▶ Exact fit and highest power transmission with less wear
▶ Optimized to durability and highest demands
▶ Precision and durability far beyond DIN/ISO standards
▶ High grip due to the circumferential knurling

Version Short Drive Size 6.3 [1/4"]
Material Chrome-vanadium steel / S2 steel Locking Drive Ball catch groove
Coating Chrome-plated and matt satin finished, with knurling Output For Phillips screws
Application Type Manually operated Norm DIN 3120 / ISO 1174
Drive Internal square according to DIN 3120 / ISO 1174

Plastic hanger
Size L1 mm L2 mm D1 mm €/Pc. Art.-No. Size L1 mm L2 mm D1 mm €/Pc. Art.-No.
PH 1 36 15.5 12.0 3.93 103 001 PH 3 36 15.5 12.0 3.93 103 003
PH 2 36 15.5 12.0 3.93 103 002

H 90
