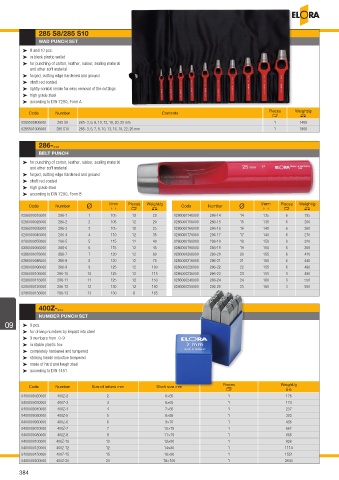

285 S8/285 S10
WAD PUNCH SET

³ 8 and 10 pcs.
³ in black plastic wallet
³ for punching of carton, leather, rubber, sealing material
and other soft material
³ forged, cutting edge hardened and ground
³ shaft red coated
³ lightly conical inside for easy removal of the cuttings
³ high grade steel
³ according to DIN 7200, Form A
Code Number Contents Pieces Weight/g
U V
0285500806000 285 S8 285- 3, 6, 8, 10, 12, 16, 20, 25 mm 1 1489
0285501006000 285 S10 285- 3, 5, 7, 8, 10, 13, 16, 19, 22, 25 mm 1 1866

286-...
BELT PUNCH
³ for punching of carton, leather, rubber, sealing material
and other soft material
³ forged, cutting edge hardened and ground
³ shaft red coated
³ high grade steel
³ according to DIN 7200, Form B

Code Number Ø l/mm Pieces Weight/g Code Number Ø l/mm Pieces Weight/g
T
U
U
V
V
T
0286000016000 286-1 1 105 12 20 0286000146000 286-14 14 135 6 195
0286000026000 286-2 2 105 12 20 0286000156000 286-15 15 135 6 200
0286000036000 286-3 3 105 12 25 0286000166000 286-16 16 140 6 260
0286000046000 286-4 4 110 12 35 0286000176000 286-17 17 140 6 270
0286000056000 286-5 5 115 12 40 0286000186000 286-18 18 150 6 320
0286000066000 286-6 6 115 12 45 0286000196000 286-19 19 150 6 365
0286000076000 286-7 7 120 12 60 0286000206000 286-20 20 155 6 410
0286000086000 286-8 8 120 12 75 0286000216000 286-21 21 155 6 440
0286000096000 286-9 9 125 12 100 0286000226000 286-22 22 155 6 490
0286000106000 286-10 10 125 12 115 0286000236000 286-23 23 155 3 490
0286000116000 286-11 11 125 12 150 0286000246000 286-24 24 160 3 550
0286000126000 286-12 12 130 12 180 0286000256000 286-25 25 160 3 550
0286000136000 286-13 13 130 6 185

400Z-...
NUMBER PUNCH SET
09 ³ 9 pcs.
³ for driving numbers by impact into steel
³ 9 numbers from 0-9
³ in stable plastic box
³ completely hardened and tempered
³ striking heads inductive tempered
³ made of hard and tough steel
³ according to DIN 1451

Code Number Size of letters mm Shaft size mm Pieces Weight/g
U V
0400000020000 400Z-2 2 6×65 1 176
0400000030000 400Z-3 3 6×65 1 174
0400000040000 400Z-4 4 7×65 1 237
0400000050000 400Z-5 5 8×65 1 303
0400000060000 400Z-6 6 9×70 1 436
0400000070000 400Z-7 7 10×75 1 667
0400000080000 400Z-8 8 11×75 1 666
0400000100000 400Z-10 10 12×80 1 828
0400000120000 400Z-12 12 14×80 1 1114
0400000150000 400Z-15 15 16×90 1 1551
0400000200000 400Z-20 20 18×100 1 2640
