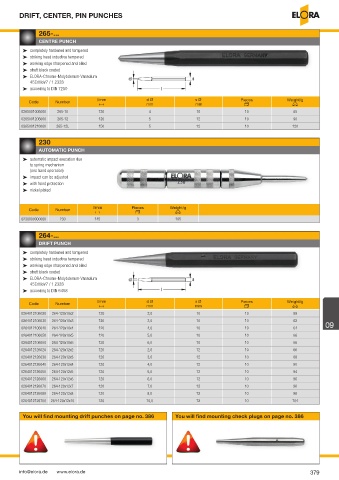

Page 379 - ELORA-Tool_Catalogue_E95

DRIFT, CENTER, PIN PUNCHES

265-...
CENTRE PUNCH

³ completely hardened and tempered
³ striking head inductive tempered
³ working edge sharpened and oiled
³ shaft black coated
³ ELORA-Chrome-Molybdenum-Vanadium
45CrMoV7 / 1.2328
³ according to DIN 7250

Code Number l/mm d Ø s Ø Pieces Weight/g
T mm mm U V
0265001006000 265-10 120 4 10 10 65
0265001206000 265-12 120 5 12 10 90
0265001216000 265-12L 150 5 12 10 120

230
AUTOMATIC PUNCH
³ automatic impact execution due
to spring mechanism
(one hand operation)
³ impact can be adjusted
³ with hand protection
³ nickel plated

Code Number l/mm Pieces Weight/g
T U V
0230000000000 230 145 3 105

264-...
DRIFT PUNCH
³ completely hardened and tempered
³ striking head inductive tempered
³ working edge sharpened and oiled
³ shaft black coated
³ ELORA-Chrome-Molybdenum-Vanadium
45CrMoV7 / 1.2328
³ according to DIN 6458

Code Number l/mm d Ø s Ø Pieces Weight/g
T mm mm U V
0264012106020 264-120x10x2 120 2,0 10 10 58
0264012106030 264-120x10x3 120 3,0 10 10 62 09
0264012106040 264-120x10x4 120 4,0 10 10 64
0264012106050 264-120x10x5 120 5,0 10 10 66
0264012106060 264-120x10x6 120 6,0 10 10 66
0264012126020 264-120x12x2 120 2,0 12 10 86
0264012126030 264-120x12x3 120 3,0 12 10 88
0264012126040 264-120x12x4 120 4,0 12 10 90
0264012126050 264-120x12x5 120 5,0 12 10 94
0264012126060 264-120x12x6 120 6,0 12 10 96
0264012126070 264-120x12x7 120 7,0 12 10 96
0264012126080 264-120x12x8 120 8,0 12 10 98
0264012126100 264-120x12x10 120 10,0 12 10 104

You will find mounting drift punches on page no. 386 You will find mounting check plugs on page no. 386
