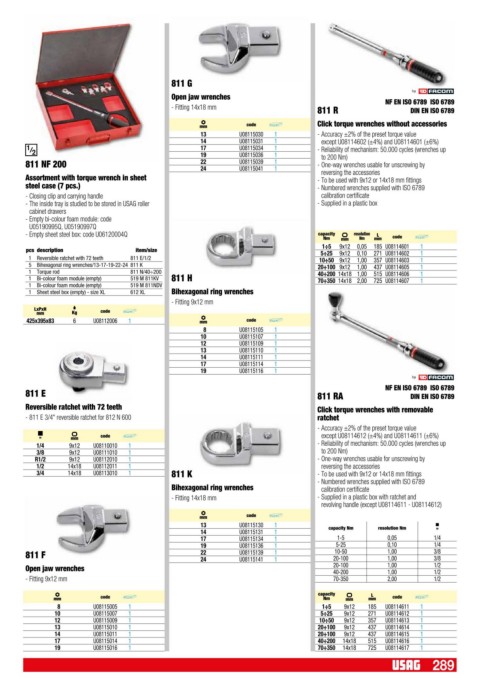

Page 291 - USAG2021

811 G
Open jaw wrenches
- Fitting 14x18 mm 811 R NF EN ISO 6789 ISO 6789
DIN EN ISO 6789
W Click torque wrenches without accessories
a
code
mm Cod. Q.tà x conf. €
13 U08115030 1 - Accuracy ±2% of the preset torque value
14 U08115031 1 except U08114602 (±4%) and U08114601 (±6%)
17 U08115034 1 - Reliability of mechanism: 50.000 cycles (wrenches up
19 U08115036 1 to 200 Nm)
811 NF 200 22 U08115039 1 - One-way wrenches usable for unscrewing by
24 U08115041 1 reversing the accessories
Assortment with torque wrench in sheet - To be used with 9x12 or 14x18 mm fittings
steel case (7 pcs.) - Numbered wrenches supplied with ISO 6789
- Closing clip and carrying handle calibration certificate
- The inside tray is studied to be stored in USAG roller - Supplied in a plastic box
cabinet drawers
- Empty bi-colour foam module: code
U05190995Q, U05190997Q
- Empty sheet steel box: code U06120004Q capacity I resolution L Cod. Q.tà x conf. €
a
Nm mm Nm mm code
1÷5 9x12 0,05 185 U08114601 1
pcs description item/size 5÷25 9x12 0,10 271 U08114602 1
1 Reversible ratchet with 72 teeth 811 E/1/2 10÷50 9x12 1,00 357 U08114603 1
5 Bihexagonal ring wrenches/13-17-19-22-24 811 K 20÷100 9x12 1,00 437 U08114605 1
1 Torque rod 811 N/40÷200 40÷200 14x18 1,00 515 U08114606 1
1 Bi-colour foam module (empty) 519 M 811KV 811 H 70÷350 14x18 2,00 725 U08114607 1
1 Bi-colour foam module (empty) 519 M 811NDV
1 Sheet steel box (empty) - size XL 612 XL Bihexagonal ring wrenches
- Fitting 9x12 mm

LxPxH code Q.tà x conf. €
Cod.
a
mm Kg
W
a
425x395x83 6 U08112006 1 mm Cod. Q.tà x conf. €
code
8 U08115105 1
10 U08115107 1
12 U08115109 1
13 U08115110 1
14 U08115111 1
17 U08115114 1
19 U08115116 1
NF EN ISO 6789 ISO 6789
811 E 811 RA DIN EN ISO 6789
Reversible ratchet with 72 teeth Click torque wrenches with removable
- 811 E 3/4" reversible ratchet for 812 N 600 ratchet
- Accuracy ±2% of the preset torque value
y I code Q.tà x conf. € except U08114612 (±4%) and U08114611 (±6%)
a
Cod.
” mm
1/4 9x12 U08110010 1 - Reliability of mechanism: 50.000 cycles (wrenches up
3/8 9x12 U08111010 1 to 200 Nm)
R1/2 9x12 U08112010 1 - One-way wrenches usable for unscrewing by
1/2 14x18 U08112011 1 reversing the accessories
3/4 14x18 U08113010 1 811 K - To be used with 9x12 or 14x18 mm fittings
- Numbered wrenches supplied with ISO 6789
Bihexagonal ring wrenches calibration certificate
- Fitting 14x18 mm - Supplied in a plastic box with ratchet and
revolving handle (except U08114611 - U08114612)
W
a
code
mm Cod. Q.tà x conf. €
13 U08115130 1 capacity Nm resolution Nm
14 U08115131 1 ”
17 U08115134 1 1-5 0,05 1/4
19 U08115136 1 5-25 0,10 1/4
811 F 22 U08115139 1 10-50 1,00 3/8
24 U08115141 1 20-100 1,00 3/8
Open jaw wrenches 20-100 1,00 1/2
40-200 1,00 1/2
- Fitting 9x12 mm 70-350 2,00 1/2
W capacity I L
a
a
Cod.
Cod.
mm code Q.tà x conf. € Nm mm mm code Q.tà x conf. €
8 U08115005 1 1÷5 9x12 185 U08114611 1
10 U08115007 1 5÷25 9x12 271 U08114612 1
12 U08115009 1 10÷50 9x12 357 U08114613 1
13 U08115010 1 20÷100 9x12 437 U08114614 1
14 U08115011 1 20÷100 9x12 437 U08114615 1
17 U08115014 1 40÷200 14x18 515 U08114616 1
19 U08115016 1 70÷350 14x18 725 U08114617 1
289
