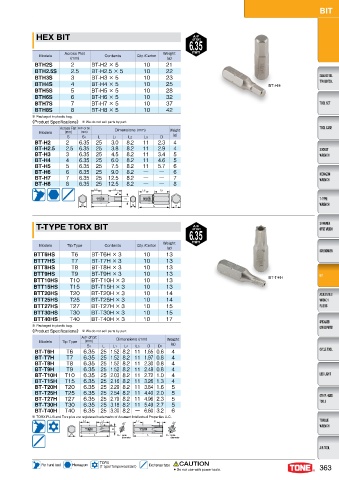

HEX BIT
6.35

Across Flat Weight mm
Models Contents Qty./Carton
(mm) (g)
BTH2S 2 BT-H2 × 5 10 21
BTH2.5S 2.5 BT-H2.5 × 5 10 22
BTH3S 3 BT-H3 × 5 10 23
BTH4S 4 BT-H4 × 5 10 25 BT-H＊
BTH5S 5 BT-H5 × 5 10 28
BTH6S 6 BT-H6 × 5 10 32
BTH7S 7 BT-H7 × 5 10 37
BTH8S 8 BT-H8 × 5 10 42
※ Packaged in plastic bag.
〈Product Specifications〉 ※ We do not sell parts by part.
Across Flat A/F of bit Dimensions (mm) Weight
Models (mm) (mm)
S S1 L L1 L2 L3 D (g)
BT-H2 2 6.35 25 3.0 8.2 11 2.3 4
BT-H2.5 2.5 6.35 25 3.8 8.2 11 2.9 4
BT-H3 3 6.35 25 4.5 8.2 11 3.4 5
BT-H4 4 6.35 25 6.0 8.2 11 4.6 5
BT-H5 5 6.35 25 7.5 8.2 11 5.7 6
BT-H6 6 6.35 25 9.0 8.2 ― ― 6
BT-H7 7 6.35 25 12.5 8.2 ― ― 7
BT-H8 8 6.35 25 12.5 8.2 ― ― 8

T-TYPE TORX BIT
6.35

Weight mm
Models Tip Type Contents Qty./Carton
(g)
BTT6HS T6 BT-T6H ×３ 10 13
BTT7HS T7 BT-T7H ×３ 10 13
BTT8HS T8 BT-T8H ×３ 10 13
BTT9HS T9 BT-T9H ×３ 10 13
BIT BT-T＊H BIT
BTT10HS T10 BT-T10H ×３ 10 13
BTT15HS T15 BT-T15H ×３ 10 13
BTT20HS T20 BT-T20H ×３ 10 14
BTT25HS T25 BT-T25H ×３ 10 14
BTT27HS T27 BT-T27H ×３ 10 15
BTT30HS T30 BT-T30H ×３ 10 15
BTT40HS T40 BT-T40H ×３ 10 17
※ Packaged in plastic bag.
〈Product Specifications〉 ※ We do not sell parts by part.
A/F of bit Dimensions (mm) Weight
Models Tip Type (mm) (g)
S1 L L1 L2 L3 D D1
BT-T6H T6 6.35 25 1.52 8.2 11 1.65 0.6 4
BT-T7H T7 6.35 25 1.52 8.2 11 1.97 0.8 4
BT-T8H T8 6.35 25 1.52 8.2 11 2.30 0.8 4
BT-T9H T9 6.35 25 1.52 8.2 11 2.48 0.8 4
BT-T10H T10 6.35 25 2.03 8.2 11 2.72 1.0 4
BT-T15H T15 6.35 25 2.16 8.2 11 3.26 1.3 4
BT-T20H T20 6.35 25 2.29 8.2 11 3.84 1.6 5
BT-T25H T25 6.35 25 2.54 8.2 11 4.40 2.0 5
BT-T27H T27 6.35 25 2.79 8.2 11 4.96 2.3 5
BT-T30H T30 6.35 25 3.18 8.2 11 5.49 2.7 5
BT-T40H T40 6.35 25 3.30 8.2 ― 6.60 3.2 6
※ TORX PLUS and Torx plus are registered trademarks of Acument Intellectual Properties LLC.

D1 Hole D1 Hole
diameter diameter

5039 CAUTION
5 UZQF 5BNQFS SFTJTUBOU &YDIBOHF UZQF 363
● Do not use with power tools.
