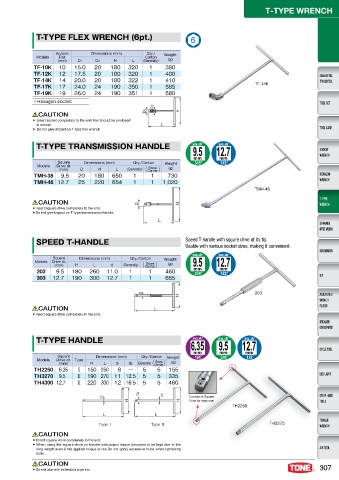

T-TYPE FLEX WRENCH (6pt.) 6

Across Dimensions (mm) Qty./ Weight
Models Flat Carton
(mm) D1 D2 H L (Generally) (g)
TF-10K 10 15.0 20 180 320 1 380
TF-12K 12 17.5 20 180 320 1 400
TF-14K 14 20.0 20 180 322 1 410
TF-17K 17 24.0 24 190 350 1 585 TF-14K
TF-19K 19 26.0 24 190 351 1 580
● Hexagon socket
CAUTION
● Insert socket completely to the end. Nut should be enclosed
in socket.
● Do not give impact on T-type flex wrench.

T-TYPE TRANSMISSION HANDLE
9.5 12.7
mm mm
Square Dimensions (mm) Qty./Carton Weight 3/8 1/2
Models Drive dr. (Generally) ( Center )
Store
(mm) D H L (g)
TMH-38 9.5 20 180 650 1 1 730
TMH-48 12.7 25 220 654 1 1 1,020
TMH-48

CAUTION
● Insert square drive completely to the end.
● Do not give impact on T-type transmission handle.

SPEED T-HANDLE Speed T-handle with square drive at its tip.
Usable with various socket sizes, making it convenient.

Square Dimensions (mm) Qty./Carton Weight
Models Drive dr. (Generally) ( Center ) 9.5 12.7
Store
(mm) H L d (g)
203 9.5 180 260 11.0 1 1 460 mm mm
1/2
3/8
303 12.7 190 300 12.7 1 1 655
203

CAUTION
● Insert square drive completely to the end.

T-TYPE HANDLE
6.35 9.5 12.7

mm mm mm
Square Dimensions (mm) Qty./Carton Weight 1/4 3/8 1/2
Models Drive dr. Type
Store
(mm) H L d1 d2 (Generally) ( Center ) (g)
TH2250 6.35 Ⅰ 150 250 8 ― 5 5 155
TH3270 9.5 Ⅱ 190 270 11 12.5 5 5 335
TH4300 12.7 Ⅱ 220 300 12 16.5 5 5 460
E E
in
in
E 2 points of Square ts of Square
ve ve for easy use.
Drive for easy use.
TH2250
5ZQF ᶗ 5ZQF ᶘ TH3270
CAUTION
● Insert square drive completely to the end.
● When using the square drive on handle side,output torque becomes to be high due to the
long length even if the applied torque is low.Do not apply excessive force when tightening
bolts.
CAUTION
● Do not use with extension pipe etc. 307
