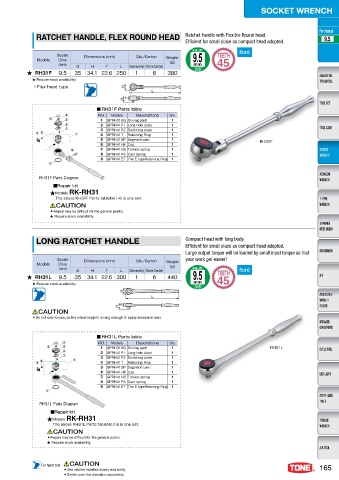

RATCHET HANDLE, FLEX ROUND HEAD Ratchet handle with Flexible Round head. 9.5
Efficient for small place as compact head adopted.

Square Dimensions (mm) Qty./Carton 9.5 Round
Models Drive Weight
(g)
(mm) D H T L (Generally) (Store Center) mm
★ RH31F 9.5 35 34.1 22.6 250 1 6 380 3/8
★ Require stock availability.
● Flex head type

■ RH31F Parts table
9 NO. Models Descriptions Qty.
6 3 ● 1 GPRH31KG Driving part1 1
2 ● 2 GPRH41P1 Long hole plate 1
7 ● 3 GPRH41P2 Switching plate 1
5 8 1 ● 4 GPRH41T Retaining Ring 1
● 5 GPRH41SP Segment cam 1 RH31F
● 6 GPRH41HK Cap 1
● 7 GPRH41NS Torsion spring 1
● 8 GPRH41PS Cam spring 1
● 9 GPRH41ET The E typeRetaining Ring 1
4
RH31F Parts Diagram
■Repair kit
★ Models RK-RH31
The above RH31F Parts tableNo.1-9 is one set.
CAUTION
● Repair may be difficult for the general public.
★ Require stock availability.

LONG RATCHET HANDLE Compact head with long body.
Efficient for small place as compact head adopted.
Large output torque will be loaded by small input torque so that
Square Dimensions (mm) Qty./Carton your work get easier!
Models Drive Weight
(g)
(mm) D H T L (Generally) (Store Center) Round
★ RH31L 9.5 35 34.1 22.6 300 1 6 440 9.5
★ Require stock availability. mm
3/8

CAUTION
● Do not over torque, as the whole lenghth is long enough to apply excessive load.

■ RH31L Parts table
9 NO. Models Descriptions Qty.
6 3 ● 1 GPRH31KG Driving part1 1 RH31L
2 ● 2 GPRH41P1 Long hole plate 1
7 ● 3 GPRH41P2 Switching plate 1
8 1
5 ● 4 GPRH41T Retaining Ring 1
● 5 GPRH41SP Segment cam 1
● 6 GPRH41HK Cap 1
● 7 GPRH41NS Torsion spring 1
● 8 GPRH41PS Cam spring 1
● 9 GPRH41ET The E typeRetaining Ring 1
4
RH31L Parts Diagram
■Repair kit
★ Models RK-RH31
The above RH31L Parts tableNo.1-9 is one set.
CAUTION
● Repair may be difficult for the general public.
★ Require stock availability.

'PS IBOE UPPM CAUTION
● Use ratchet handles slowly and softly. 165
● Switch over the direction completely.
