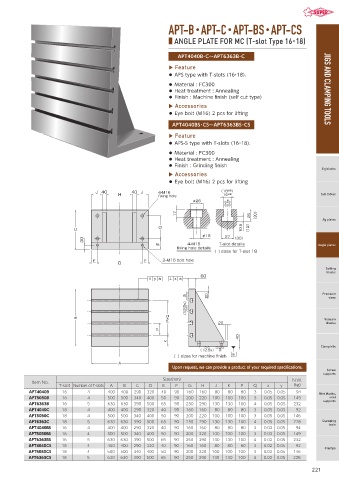

APT-B ・ APT-C ・ APT-BS ・ APT-CS

■ ANGLE PLATE FOR MC (T-slot Type 16 ・ 18)

APT4040B･C～APT6363B･C
Feature
● APS type with T-slots (16・18).
● Material : FC300
● Heat treatment : Annealing JIGS AND CLAMPING TOOLS
● Finish : Machine finish (self cut type)
Accessories
● Eye bolt (M16) 2 pcs for lifting

APT4040BS･CS～APT6363BS･CS
Feature
● APS-S type with T-slots (16・18).
● Material : FC300
● Heat treatment : Annealing
● Finish : Grinding finish
Jig blocks
Accessories
● Eye bolt (M16) 2 pcs for lifting

4-M16 Sub tables
fixing hole

Jig plates

4-M16 T-slot details Angle plates
fixing hole details
( ) sizes for T-slot 18
2-M16 bolt hole
Setting
blocks

Precision
vises

Vacuum
chucks

Clamp kits
( ) sizes for machine finish

Upon request, we can provide a product of your required specifications.
Screw
supports
Size （mm） N.W.
Item No.
T-slot Number of T-slots A B C D E F G H J K P Q x y （kg）
APT4040B 16 4 400 400 290 320 40 90 160 160 80 80 80 3 0.05 0.05 94 Mini blocks,
APT5050B 16 4 500 500 340 400 50 90 200 220 100 100 100 3 0.05 0.05 149 mini
supports
APT6363B 16 5 630 630 390 500 65 90 250 290 130 130 100 4 0.05 0.05 232
APT4040C 18 4 400 400 290 320 40 90 160 160 80 80 80 3 0.05 0.05 92
APT5050C 18 4 500 500 340 400 50 90 200 220 100 100 100 3 0.05 0.05 146
APT6363C 18 5 630 630 390 500 65 90 250 290 130 130 100 4 0.05 0.05 228 Clamping
tools
APT4040BS 16 4 400 400 290 320 40 90 160 160 80 80 80 3 0.02 0.05 94
APT5050BS 16 4 500 500 340 400 50 90 200 220 100 100 100 3 0.02 0.05 149
APT6363BS 16 5 630 630 390 500 65 90 250 290 130 130 100 4 0.02 0.05 232
APT4040CS 18 4 400 400 290 320 40 90 160 160 80 80 80 3 0.02 0.05 92
Clamps
APT5050CS 18 4 500 500 340 400 50 90 200 220 100 100 100 3 0.02 0.05 146
APT6363CS 18 5 630 630 390 500 65 90 250 290 130 130 100 4 0.02 0.05 228

221
