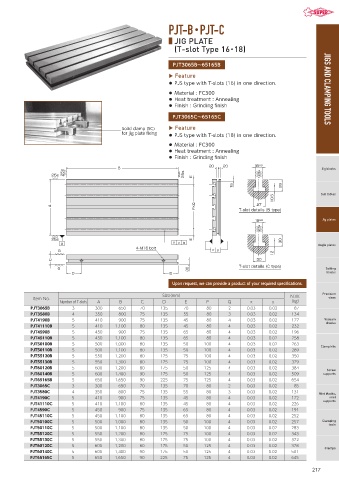

PJT-B ・ PJT-C

■ JIG PLATE
(T-slot Type 16 ・ 18)

PJT3065B～65165B
Feature
● PJS type with T-slots (16) in one direction.
● Material : FC300 JIGS AND CLAMPING TOOLS
● Heat treatment : Annealing
● Finish : Grinding finish
PJT3065C～65165C
Feature
Solid clamp (SC)
for jig plate fixing
● PJS type with T-slots (18) in one direction.
● Material : FC300
● Heat treatment : Annealing
● Finish : Grinding finish
Jig blocks

Sub tables

T-slot details (B type)

Jig plates

Angle plates
4-M16 bolt

T-slot details (C type)
Setting
blocks
Upon request, we can provide a product of your required specifications.
Precision
Size （mm） N.W.
Item No. vises
Number of T-slots A B C D E P Q x y （kg）
PJT3065B 3 300 650 70 135 70 80 2 0.03 0.02 87
PJT3580B 4 350 800 75 135 55 80 3 0.03 0.02 134
PJT4190B 5 410 900 75 135 45 80 4 0.03 0.02 177 Vacuum
chucks
PJT41110B 5 410 1,100 80 135 45 80 4 0.03 0.02 232
PJT4590B 5 450 900 75 135 65 80 4 0.03 0.02 196
PJT45110B 5 450 1,100 80 135 65 80 4 0.03 0.02 258
PJT50100B 5 500 1,000 80 135 50 100 4 0.03 0.02 263
Clamp kits
PJT50110B 5 500 1,100 80 135 50 100 4 0.03 0.02 289
PJT55120B 5 550 1,200 80 175 75 100 4 0.03 0.02 350
PJT55130B 5 550 1,300 80 175 75 100 4 0.03 0.02 379
PJT60120B 5 600 1,200 80 175 50 125 4 0.03 0.02 384 Screw
PJT60140B 5 600 1,400 90 175 50 125 4 0.03 0.02 509 supports
PJT65165B 5 650 1,650 90 225 75 125 4 0.03 0.02 654
PJT3065C 3 300 650 70 135 70 80 2 0.03 0.02 85
PJT3580C 4 350 800 75 135 55 80 3 0.03 0.02 131 Mini blocks,
PJT4190C 5 410 900 75 135 45 80 4 0.03 0.02 172 mini
supports
PJT41110C 5 410 1,100 80 135 45 80 4 0.03 0.02 226
PJT4590C 5 450 900 75 135 65 80 4 0.03 0.02 191
PJT45110C 5 450 1,100 80 135 65 80 4 0.03 0.02 252
PJT50100C 5 500 1,000 80 135 50 100 4 0.03 0.02 257 Clamping
tools
PJT50110C 5 500 1,100 80 135 50 100 4 0.03 0.02 283
PJT55120C 5 550 1,200 80 175 75 100 4 0.03 0.02 343
PJT55130C 5 550 1,300 80 175 75 100 4 0.03 0.02 372
PJT60120C 5 600 1,200 80 175 50 125 4 0.03 0.02 378
Clamps
PJT60140C 5 600 1,400 90 175 50 125 4 0.03 0.02 501
PJT65165C 5 650 1,650 90 225 75 125 4 0.03 0.02 645
