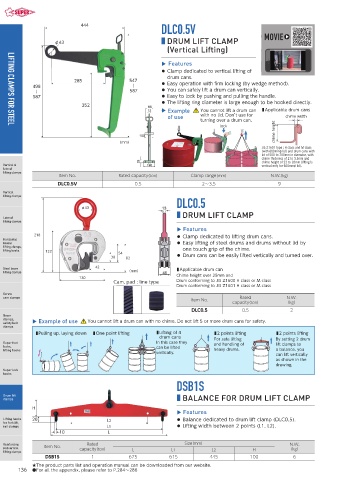

Page 138 - 世霸SuperToolVol.6

DLC0.5V
444

■ DRUM LIFT CLAMP
φ43
(Vertical Lifting)

Features
● Clamp dedicated to vertical lifting of
drum cans.
285 547
498 〜 ● Easy operation with fi rm locking (by wedge method).
〜 587 ● You can safely lift a drum can vertically.
587 ● Easy to lock by pushing and pulling the handle.
● The lifting ring diameter is large enough to be hooked directly.
352
Example You cannot lift a drum can ■ Applicable drum cans
of use with no lid. Don’t use for chime width
turning over a drum can.
chime height
lock
LIFTING CLAMPS FOR STEEL
（mm）
JIS Z1601 type : H class and M class
(with 600mmφ lid) and drum cans with
lid of 500 to 700mm in diameter, with
chime thickness of 2 to 3.5mm and
chime height of 22 to 28mm (lifting is
Vertical & vertical only for 600mmφ lid).
lateral
lifting clamps
Item No. Rated capacity（ton） Clamp range（mm） N.W.（kg）
DLC0.5V 0.5 2〜3.5 9
Vertical
DLC0.5
lifting clamps
φ43
■ DRUM LIFT CLAMP
Lateral
lifting clamps
Features
218 ● Clamp dedicated to lifting drum cans.

Horizontal

lateral ● Easy lifting of steel drums and drums without lid by
lifting clamps,
lifting hooks 122 one touch grip of the chime.
54 ● Drum cans can be easily lifted vertically and turned over.
30 82
Steel beam 42 ■ Applicable drum can
lifting clamps （mm）
Chime height over 25mm and
130
Cam, pad : line type Drum conforming to JIS Z1600 H class or M class
Drum conforming to JIS Z1601 H class or M class
Screw
cam clamps Rated N.W.
Item No.
capacity （ton） （kg）
DLC0.5 0.5 2
Beam
clamps,
safety belt Example of use You cannot lift a drum can with no chime. Do not lift 5 or more drum cans for safety.
clamps
■ Pulling up, laying down ■ One point lifting ■ Lifting of 4 ■ 2 points lifting ■ 2 points lifting
drum cans For safe lifting By setting 2 drum
Super foot In this case they and handling of lift clamps to
locks, can be lifted
lifting hooks heavy drums. a balance, you
vertically.
can lift vertically
as shown in the
drawing.
Super lock
hooks
DSB1S
Drum lift
clamps ■ BALANCE FOR DRUM LIFT CLAMP
H
Features
Lifting hooks 20 L2 ● Balance dedicated to drum lift clamp (DLC0.5).

for forklift,
rail clamps L1 ● Lifting width between 2 points (L1, L2).
10 L
Reinforcing Rated Size （mm） N.W.
rod vertical Item No. capacity （ton） L H （kg）
lifting clamps L1 L2
DSB1S 1 675 615 445 100 6
★The product parts list and operation manual can be downloaded from our website.
136 ●For all the appendix, please refer to P.284〜286
