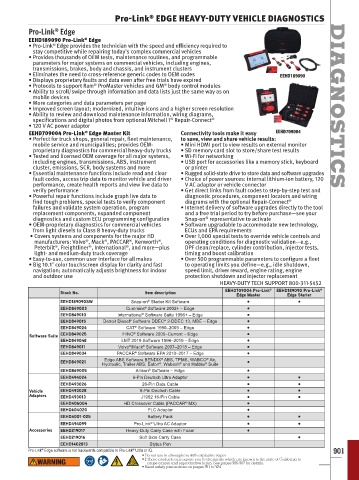

Pro-Link EDGE HEAVY-DUTY VEHICLE DIAGNOSTICS
®
Pro-Link Edge
®
EEHD189090 Pro-Link Edge
• Pro-Link Edge provides the technician with the speed and efficiency required to
®
stay competitive while repairing today's complex commercial vehicles
• Provides thousands of OEM tests, maintenance routines, and programmable
parameters for major systems on commercial vehicles, including engines,
transmissions, brakes, body and chassis, and instrument clusters
• Eliminates the need to cross-reference generic codes to OEM codes EEHD189090
• Displays proprietary faults and data even after free trials have expired
®
®
• Protocols to support Ram ProMaster vehicles and GM body control modules
• Ability to scroll/swipe through information and data lists just the same way as on
mobile devices
• More categories and data parameters per page DIAGNOSTICS
• Improved screen layout; modernized, intuitive icons and a higher screen resolution
• Ability to review and download maintenance information, wiring diagrams,
specifications and digital photos from optional Mitchell 1 Repair-Connect
®
®
• 120 V AC power adaptor
EEHD709004 Pro-Link Edge Master Kit Connectivity tools make it easy EEHD709004
®
• Perfect for truck shops, general repair, fleet maintenance, to save, view and share vehicle results:
mobile service and municipalities; provides OEM- • Mini HDMI port to view results on external monitor
proprietary diagnostics for commercial heavy-duty trucks • SD memory card slot to store/share test results
• Tested and licensed OEM coverage for all major systems, • Wi-Fi for networking
including engines, transmissions, ABS, instrument • USB port for accessories like a memory stick, keyboard
cluster, emissions, SCR, body systems and more or printer
• Essential maintenance functions include read and clear • Rugged solid-state drive to store data and software upgrades
fault codes, access trip data to monitor vehicle and driver • Choice of power sources: internal lithium-ion battery, 120
performance, create health reports and view live data to V AC adaptor or vehicle connector
verify performance • Get direct links from fault codes to step-by-step test and
• Powerful repair functions include graph live data to diagnostic procedures, component locators and wiring
find tough problems, special tests to verify component diagrams with the optional Repair-Connect ®
failures and validate system operation, program • Internet delivery of software upgrades directly to the tool
replacement components, expanded component and a free trial period to try before purchase—see your
®
diagnostics and custom ECU programming configuration Snap-on representative to activate
• OEM-proprietary diagnostics for commercial vehicles • Software upgradable to accommodate new technology,
from light diesels to Class 8 heavy-duty trucks ECUs and EPA requirements
• Covers systems and components for the major HD • Over 1,000 special tests to override vehicle controls and
®
®
®
manufacturers: Volvo , Mack , PACCAR , Kenworth , operating conditions for diagnostic validation—e.g.,
®
®
®
®
Peterbilt , Freightliner , International , and more—plus DPF clean/replace, cylinder contribution, injector tests,
light- and medium-duty truck coverage timing and boost calibration
• Easy-to-use, common user interface for all makes • Over 500 programmable parameters to configure a fleet
• Big 10.1ʺ color touchscreen display for clarity and fast to operating limits you define—e.g., idle shutdown,
navigation; automatically adjusts brightness for indoor speed limit, driver reward, engine rating, engine
and outdoor use protection shutdown and injector replacement
HEAVY-DUTY TECH SUPPORT 800-311-5452
®
EEHD709004 Pro-Link EEHD189090 Pro-Link
®
Stock No. Item description
Edge Master Edge Starter
®
EEHD189090SW Snap-on Starter Kit Software • •
®
EEHD849003 Cummins Software 2002+ – Edge •
®
EEHD849010 International Software Suite 1996+ – Edge •
®
®
EEHD849015 Detroit Diesel Software DDEC 2-DDEC 13, MBE – Edge •
®
EEHD849024 CAT Software 1990–2009 – Edge •
EEHD849025 HINO Software 2005–Current – Edge •
®
Software Suite
EEHD849048 LMT 2019 Software 1996–2019 – Edge •
®
®
EEHD849011 Volvo /Mack Software 2007–2018 – Edge •
®
EEHD849034 PACCAR Software EPA 2010–2017 – Edge •
Edge ABS Software BENDIX ABS, TPMS, WABCO Air,
®
®
EEHD849021 •
Hydraulic, Trailer ABS: Eaton , Wabash and Haldex Suite
®
®
®
®
EEHD849005 Allison Software – Edge •
EEHD494024 6-Pin Deutsch Ultra Adaptor • •
EEHD493026 26-Pin Data Cable • •
Vehicle EEHD493028 9-Pin Deutsch Cable • •
Adaptors EEHD493013 J1962 16-Pin Cable • •
®
EEHD406004 HD Crossover Cable (PACCAR MX) •
EEHD604020 PLC Adaptor •
EEHD4001-025 Battery Pack • •
®
EEHD494099 Pro-Link Ultra AC Adaptor • •
Accessories EEHD219017 Heavy-Duty Carry Case with Foam •
EEHD219016 Soft Side Carry Case •
EEHD1402813 Stylus Pen
Pro-Link Edge software is not backwards compatible to Pro-Link Ultra or iQ. 901
®
®
